Danfoss EMP 2-8711-F6CD24-2
Range -1 to 5 bar

688.89 Excl. VAT

EMP 2, Box-type pressure transmitters

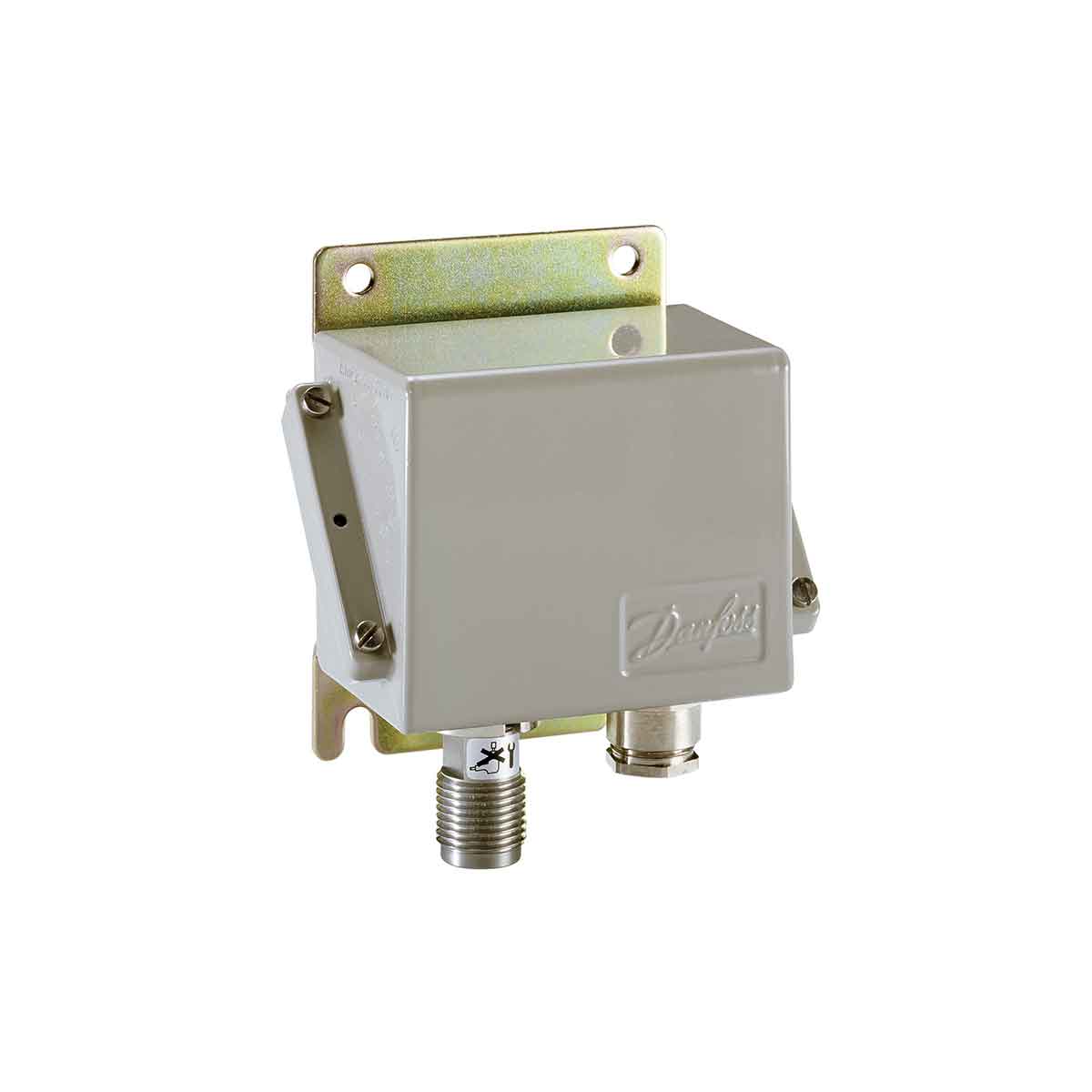

Danfoss EMP 2 Pressure Transmitter
Pressure Range: -1 to 5 bar
Output Signal: 4 to 20 mA
Voltage: 11-32 VDC
Electrical Connection: Terminal Block/PG 13.5
Pressure Connection: G1/2A / G1/4
Pressure Reference: Gauge Relative

Product Attachment : PDF

Available on backorder

Description

Danfoss pressure transmitter EMP 2 ship approved is designed for use in almost all marine and industrial applications,
and offers a reliable pressure measurement, even under harsh environmental conditions.
The pressure transmitter programme in box design is approved according to LR, DNV, GL, RINA, ABS, BV, NKK, PRS, MRS, KRS requirements,
and covers a 4-20 mA output signal, gauge (relative) versions, measuring ranges from 0-1 to 0-400 bar, zero point and span adjustment,
Pg 13,5 cable entry and different pressure connections.
A robust construction enables the pressure transmitter to meet the strictest requirements.

Pressure Range -1 to 5 bar
Accuracy (Max/Typ.) ±FS 0.50%/0.5%
Overload Press. Max 35.0 bar
Adjust Zero Point/Span No
Medium Temperature Range -10 to 70 °C
Pressure Conn. Type G – 1/2 Male/Female
Electrical Conn. Type Terminal block, Pg 13.5
Output Sign. Type 4 – 20 mA
Enclosure Rating IP67
Approval ABS, BV, CCS, DNV, GL, GOST POCC, KR, LR, NNK, RINA
EAN no. 5702423020959

Additional Information
Weight 1 kg
Dimensions 25 × 25 × 15 cm
Danfoss

Type

Power Supply

Output

Maker

Price €

Electrical Connection

Pg13.5

Max Pressure range (Bar)

5

Min Pressure range (Bar)

-1

Brand

Danfoss
