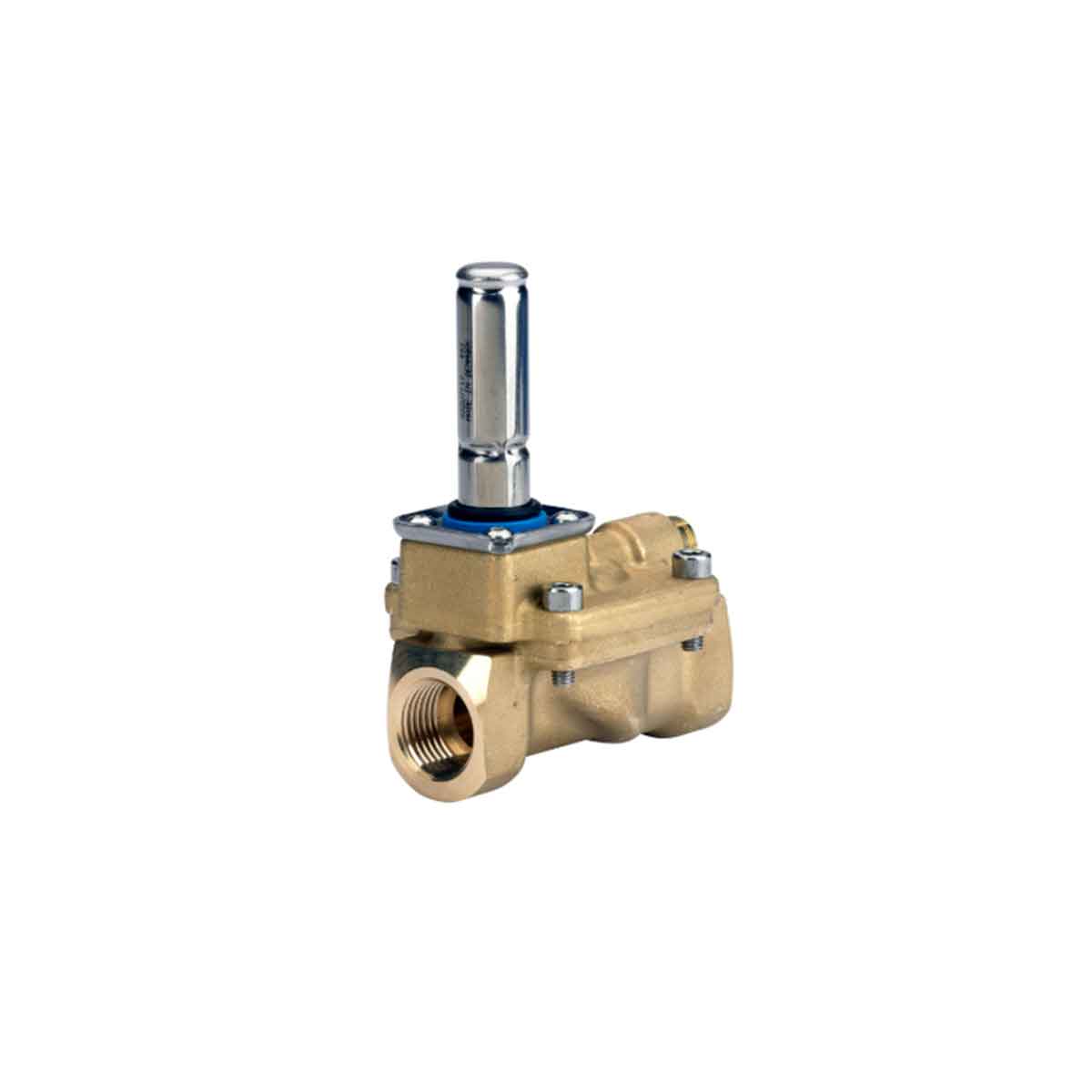

Danfoss EV220B 20B G 34E NC000 Solenoid Valve

154.18 74.01 Excl. VAT

EV220B (15-50 series), Servo-operated 2/2-way solenoid valves

Danfoss WRAS Solenoid Valve
Body Only
Coil Types: BA, BB, BE, BG, BO, BP
Function: 2-Way NC
Body Material: Brass
Seal Material: EPDM
Pipe Size: G3/4
Orifice: 20mm
Temp Range: -30 to 120°C
Differential Pressure Ranges: 0.3 to 16 Bar

Product Attachment : PDF

Description

Danfoss WRAS approved solenoid valve 032U7120 EV220B 20B G34E NC 000 is a universal indirect servo-operated 2/2-way solenoid valve program.
Valve body in brass, dezincification resistant brass and stainless steel ensures that a broad variety of application can be covered.
Built-in pilot filter as standard, adjustable closing time and enclosures up to IP67 ensures optimal performance even under critical working conditions.
• 2/2-way
• Servo-operated
• DN 15 – DN 50
• Valve body available in brass, DZR brass, gun metal or stainless steel
• NC and NO versions
• ISO 228/1 or NPT thread connection (EVSI and EVSI-U)
• Built in filter for protection of pilot system
• Water hammer damped
• Adjustable closing time available

No. of Ways 2/2
Connection Internal G3/4
Actuator size 13.5 mm
Ambient Temp. Max. 50 °C
Medium Temp Range -30 to 140 °C
Diff. Pressure 0.3 to 16 bar
Max Working Pressure 16.0 bar
Function NC
KV Value 8.000 m^3/h
Orifice Size 20.00 mm
EAN no. 5702423009510

Brand

Danfoss

Additional Information
Weight 0.9 kg
Dimensions 13 × 5 × 4 cm
Danfoss

Type

Specification

Maker

Price €

Actuator size (mm)

15

Orifice Size (mm)

20

Max Diff. Pressure (Bar)

16

Min Diff. Pressure (Bar)

0.3

No. of Ways

2/2
