1 to 6 bar
€228.12 Excl. VAT

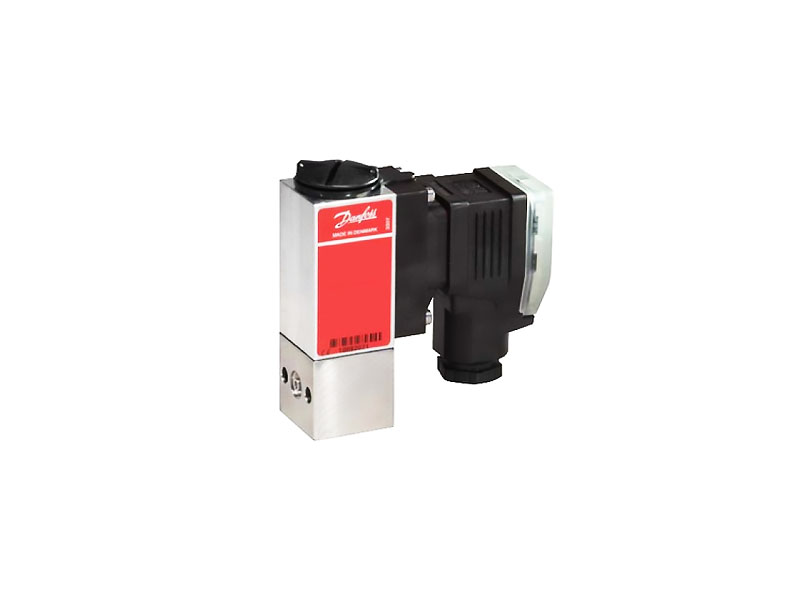

MBC 5100, Block-type compact pressure switches for marine applications
MBC 5100-2231-2DB04 Danfoss pressure switches are block design to survive in the harsh conditions known from machine rooms onboard ships
Regulating Range: 1 to 6 bar
Differential MIN Range: 1 bar
Differential MAX Range: 2.5 bar
Max. Working Pressure: 150 bar
Electrical connection: EN 175301-803-A Pg 13.5
Connection Size: G – 1/4 Female with Flange ISO 228-1
Contact Function: SPDT
Product Attachment : PDF
Available on backorder
MBC5100-2231-2DB04 pressure switches are used in marine applications where space and reliability are the most important features.
MBCs are compact pressure switches, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships.
061B102966 MBC 5100-2231-2DB04 have high vibration resistance and feature all commonly marine approvals.
The fixed, but low differential guarantees accurate monitoring of critical pressures.
MBV test valves can be delivered as standard option for MBC pressure switches.
Ambient Temp. -10 to 85 °C
Contact rating AC15=0.5 A, 250 V
Contact rating DC13=12 W, 125 V
Diff. Range Setting (Min/Max) 1.00 to 2.50 bar
Max Test/Working Pressure 150.0/150.0 bar
Regulation Range 1.00 to 6.00 bar
Pressure Connection Type G – ¼ Female
Electrical Connection Type Female DIN-plug EN 175301-803-A Pg 13.5
Enclosure Rating IP65
Approval ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK
EAN no. 5702423213641
