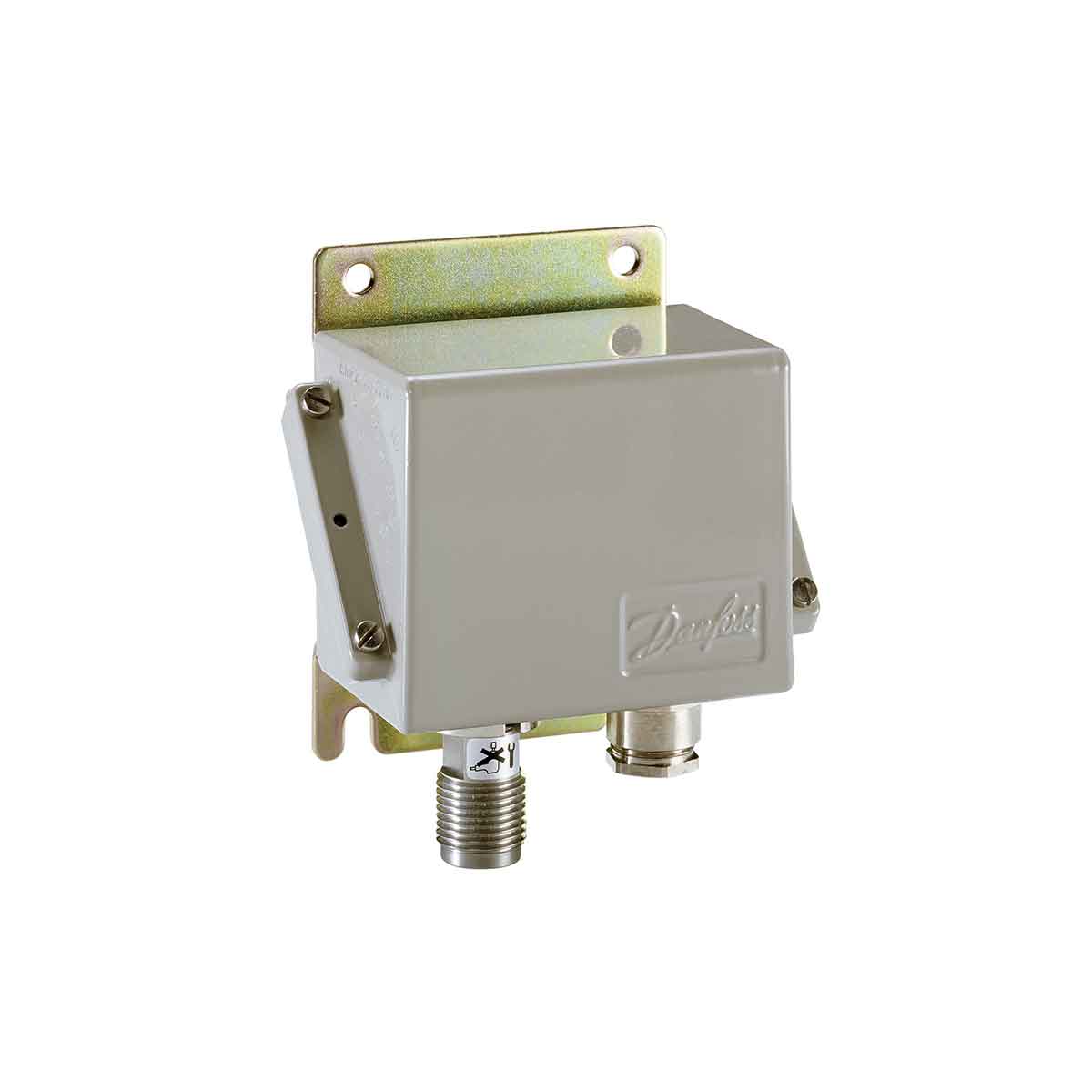

Danfoss Pressure Transmitter 084G2107
€734.40 Excl. VAT
Pressure Transmitter| Pe: 0 ~ 6 Bar | 1/2″ Male + 1/4″ Female(G)
Available on backorder
Description
The Danfoss 084G2107 is a pressure transmitter from the EMP 2 series . It is designed for marine and industrial applications, built to cope with harsh environments such as vibration, shock, wide temperature ranges.
Additional Information
| Weight | 1 kg |
|---|---|
| Dimensions | 25 × 25 × 15 cm |
| Measuring Range (Pe): | 0 bar to +6 bar (sealed gauge). |
| Output signal : | 4–20 mA current loop. |
| Overload Pressure: | 20 bar. |
| Maximum load resistance (at 24 V DC) [Ohm]: | 410 ~ 650. |
| Ambient (sensor) temperature: | –10 °C to +70 °C typical, up to –10 °C to +85 °C for ATEX Zone 2 version. |
| Pressure connection: | Standard G ½ A. |
| Electrical connection: | PG13.5 cable entry for cable diameters 5–14 mm. |
| Protection Class: | IP65. |
Brand
Danfoss
