Sale

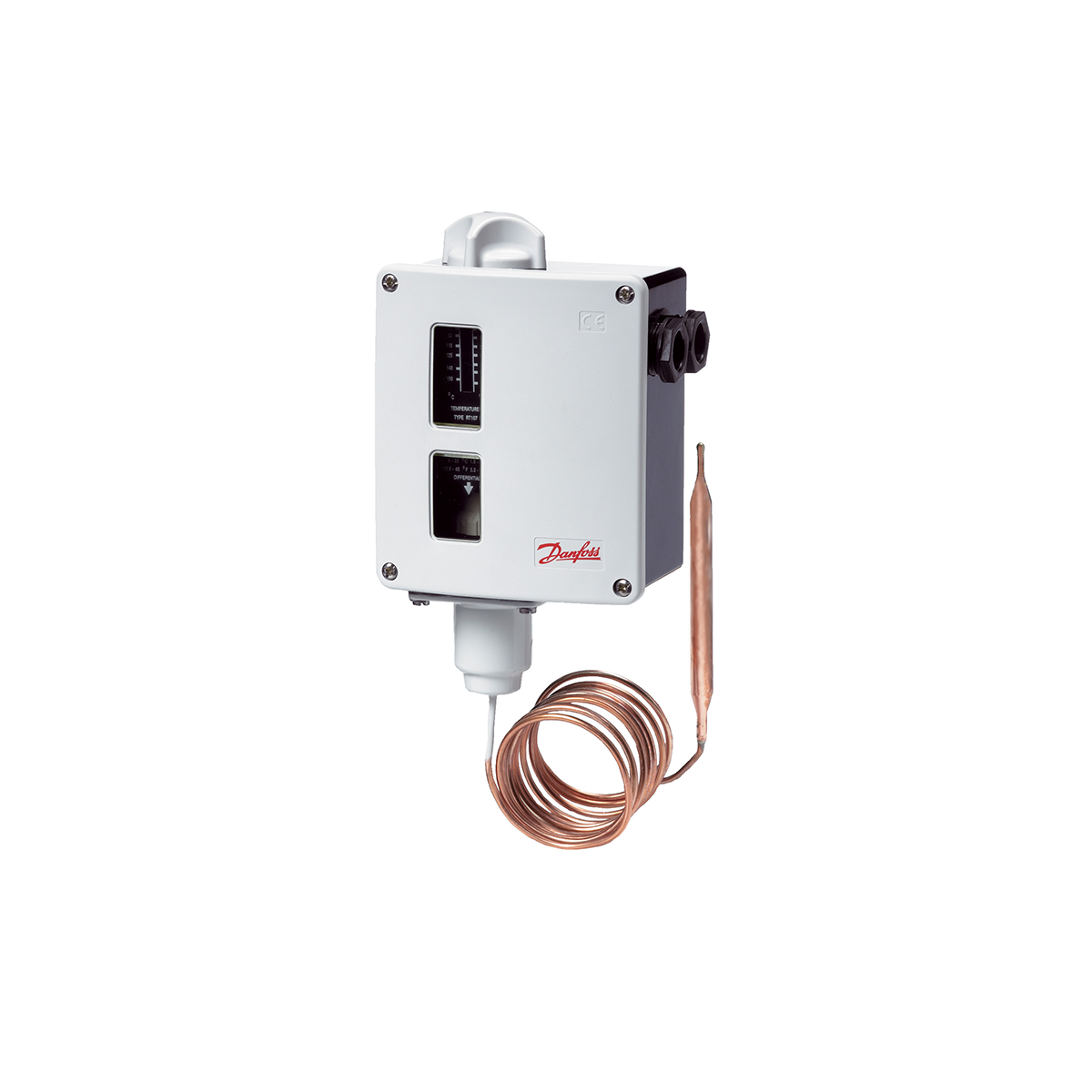

Danfoss RT107 Temperature Switch
Range 70 to 150°C

246.89 103.69 Excl. VAT

Temperature Switch
RT thermostats are used in general industrial and marine sectors.
The RT thermostats series consist of a variety of ordinary room temperature switches and remote sensor temperature switches including neutral zone temperature switches. RT thermostats are generally recommended for applications where safety or economical consequences are critical factors.Temperature range: 25…90°C
Replaceable contact system
Also available with gold plated contact systems
Fail-safe
Adjustable differential
Enclosure IP66
Available with min. and max. reset function (IP54)
Available with dead zone
Available with all relevant marine approvals

Product Attachment : PDF

Description

A set of Pg13.5 cable gland is attached to the RT in a separate bag. To ensure IP66 (units with automatic reset) or IP54
(units with external reset) grade of RT enclosure it is necessary to assemble this gland. If this gland is not used with a cable,
a metal blinding should be also assembled.
RT units can be fitted in any position.
For correct fitting of sensor pockets 1 with outdoor installation, the unit should be protected against direct rainfall.
It could, for example, be placed under a lean-to roof.

Type Code RT107
Weight 0.826 Kg
Ambient temp. -50 – 70 °C
Ambient temp. -58 – 158 °F
Approval CCC, CE, DNV, EAC, GL, KR, LR, LVD, NKK, PZH, RMRS, RoHS, RoHS China, TYSK
Cap. tube length 78 3/4 in
Cap. tube length 2.000 mm
Charge type Partial
Contact function SPDT
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Diff. max. range setting 1,8 – 8,0 °C
Diff. min. range setting 6,0 – 25,0 °C
Diff. type Adjustable
EAN no. 5702423119615
Electr. conn. Male/Female Female
Electr. conn. size 2xPg 13.5
Electr. spec. standard EN 60947-4/-5
Enclosure rating IP66
Glow lamp No
Max. sensor temp. 215 °C
Max. sensor temp. 419,0 °F
Pack format Multi pack
Prod. description Temperature Control
Prod. group Switches and thermostats
Prod. name Thermostat
Pack qty. 15 PC
Reset AUTO
Sensor pocket length min. 4 13/32 in
Sens. pocket length min. 112 mm
Sensor size (ø x L) 3/8 x 4 1/4 in
Sensor size (ø x L) 9.5 X 110 mm
Sensor type Remote Sensor
Temp. range 70 – 150 °C
Temp. range 158 – 302 °F

Brand

Danfoss

Additional Information
Weight 1 kg
Dimensions 13 × 27 × 10 cm
Danfoss

size(f)

Type

Maker

Price €

Electrical Connection

Pg13.5

Sensor Length (mm)

112

Temperature Range (°C)

70..150

Capillary tube length (mm)

2000
