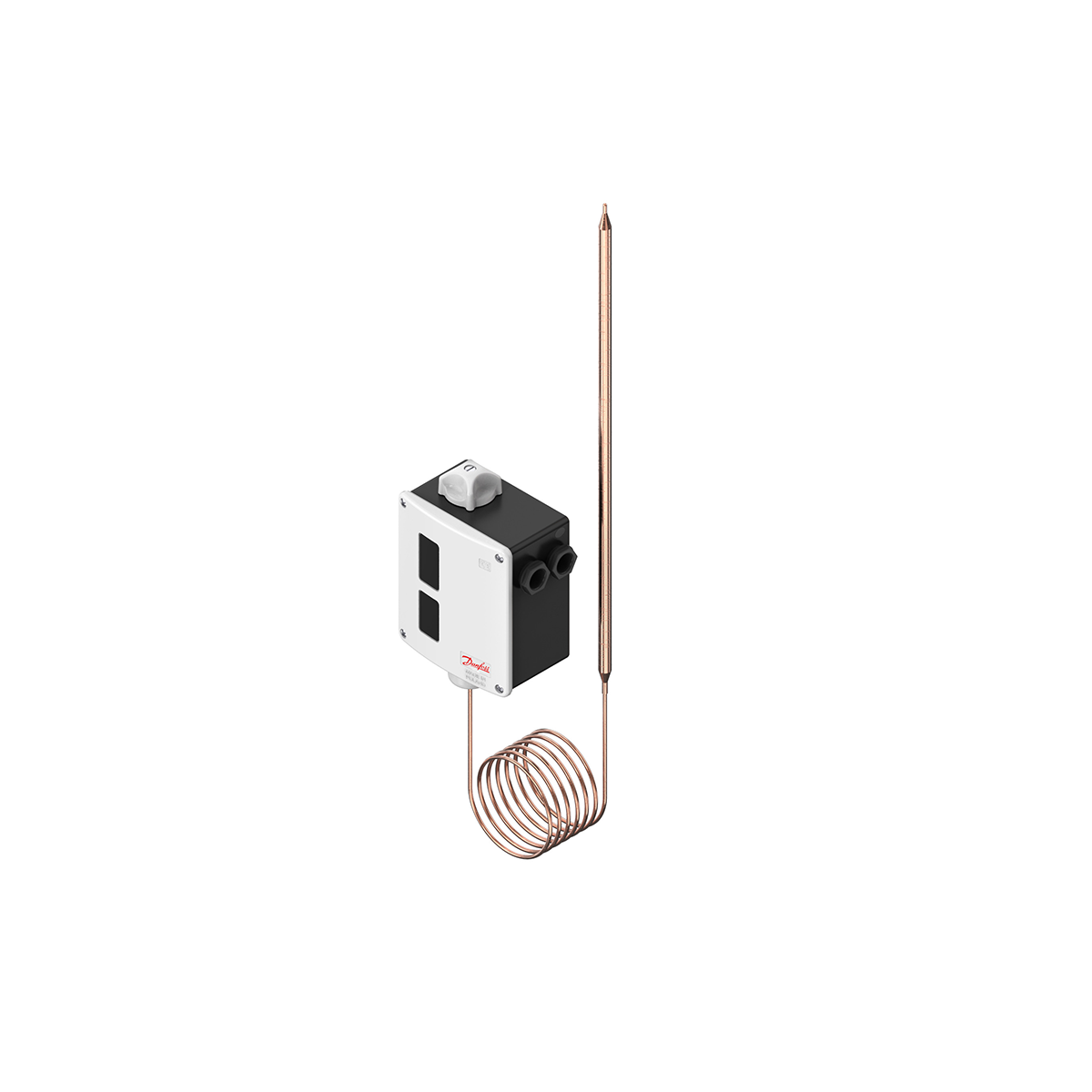

Danfoss RT108 Temperature Switch
Range 30 to 140°C

288.03 120.97 Excl. VAT

SKU: 017-506066 Category:

RT, Temperature switches

Danfoss Temperature Switch
Temperature Range: 30 to 140°C
Temp. Differential Min. Range: 5 to 20°C
Temp. Differential Max Range: 4 to 14°C
Max. Sensor Temperature: 220°C
Sensor Type: Remote Sensor With Capillary Tube
Capillary Length: 2000mm
Contact Function: SPDT
Reset: Automatic
Sensor Size: 9.5ø x 410mm

Product Attachment : PDF

Description

Danfoss temperature switches are used in general industrial and marine sectors.
The 017-506066 RT108 Danfoss temperature switches are part of a series
consisting of a variety of ordinary room temperature switches and remote
sensor temperature switches including neutral zone temperature switches.
RT temperature switches are generally recommended for applications where
safety or economical consequences are critical factors.

Temperature Range 30 to 140 °C
Max. Sensor Temperature 220 °C
Diff. Min/Max Range Setting 4.0 to 14.0 °C/5.0 to 20.0 °C
Ambient Temperature -50 to 70 °C
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Sensor Size (Ø x L) 9.5 x 410 mm
Sensor Pocket Length Min. 112 mm
Electrical Connection Female Screwed cable entry 2xPg 13.5 DIN 40430
Enclosure Rating IP66
Approval CCC, CE, EAC, LVD, NKK, PZH, RMRS, RoHS, RoHS China, TYSK
EAN no. 5702423119561

Brand

Danfoss

Additional Information
Weight 1.3 kg
Dimensions 12 × 16 × 26 cm
Danfoss

size(f)

Type

Maker

Price €

Electrical Connection

Pg13.5

Sensor Length (mm)

112

Temperature Range (°C)

30..140

Capillary tube length (mm)

2000
