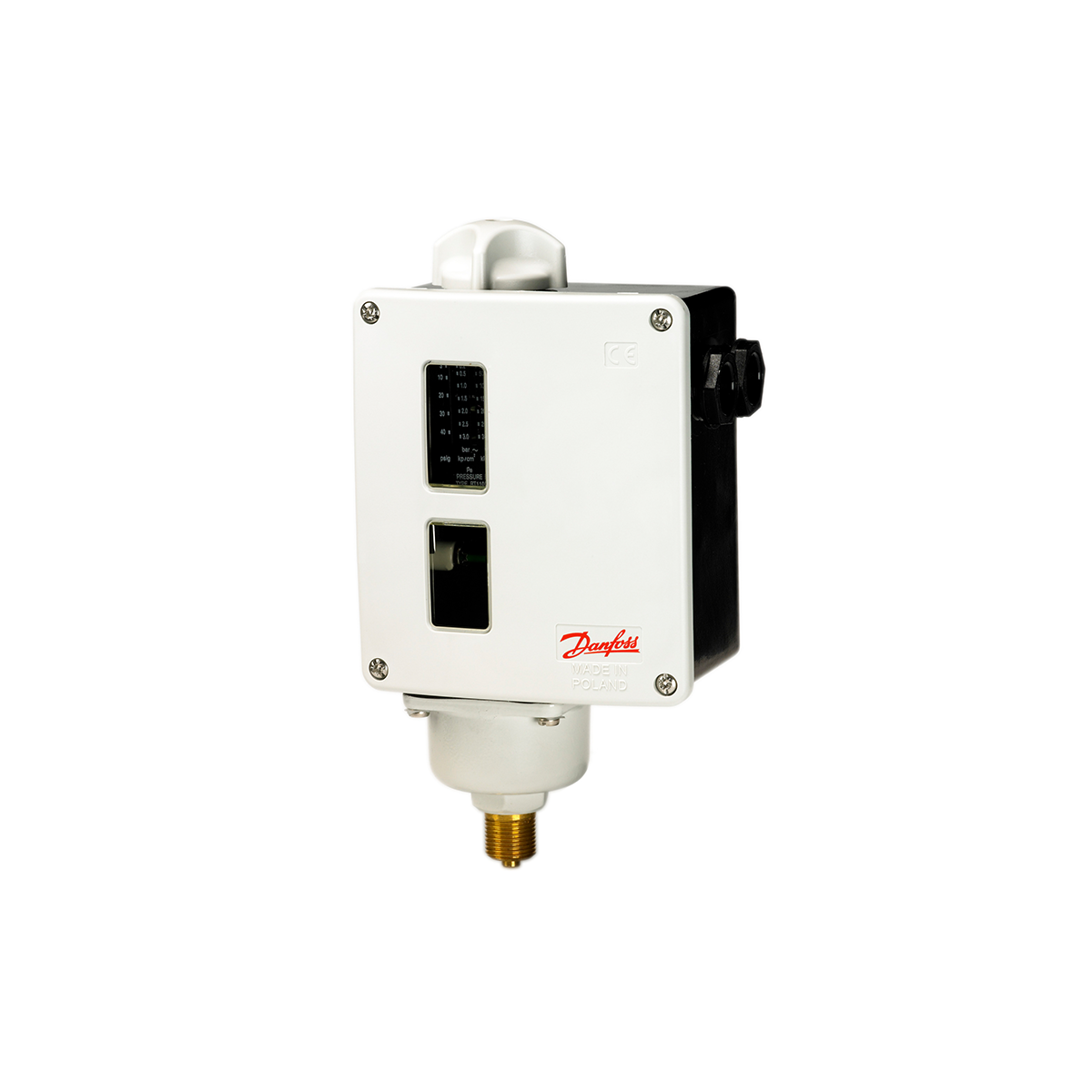

Danfoss RT112 Pressure Switch
0.09 to 0.40 bar

274.81 117.73 Excl. VAT

RT pressure switch, low pressure

Danfoss pressure switch for vaccum duty and many monitoring and control applications
Regulating Range: -1.0 to 0.0 bar
Differential Range: 0.09 to 0.04 bar
Max. Working Pressure: 7 bar
Connection Size: 3/8 bsp
Contact Function: SPDT
Scale Range Id: 017A1681-01
Reset: Automatic

Product Attachment : PDF

Available on backorder

Description

Danfoss pressure switches for use in general industrial and marine sectors.
The Danfoss RT121 017-521566 pressure switch is part of a series consisting of a variety of ordinary controls including neutral zone pressure switches,
safety pressure switches for steam boiler plant, and gold plated fail-safe controls for applications in which safety or economical consequences are critical factors.

Type Code RT121
Weight 0.858 Kg
Ambient temp. range -50 – 70 °C
Ambient temp. range -58 – 158 °F
Approval CCC, CE, EAC, LVD, NKK, PZH, RINA, RMRS, RoHS, RoHS China, TYSK
Contact function SPDT
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Diff. 0,09 – 0,40 bar
Diff. 1,30 – 5,80 psi
EAN no. 5702423120796
Electrical conn. Male/Female Female
Electr. conn. size 2xPg 13.5
Electr. spec. standard EN 60947-4/-5
Enclosure rating IP66
Max. test pressure 8,0 bar
Max. test pressure 116 psig
MWP 7,0 bar
MWP 100 Psig
Pack format Multi pack
Press. conn. std. ISO 228-1
Press. conn. type G – 3/8 Male
Descript. Pressure control
Prod. Group Switches and thermostats
Prod. name Pressure switch
Pack qty. 15 pc
Reg. range 29.5 inHg – 0 psig
Reg. range -1,00 – 0,00 bar
Reset Auto

Brand

Danfoss

Additional Information
Weight 0.9 kg
Dimensions 16 × 9 × 12 cm
Danfoss

Special Function

Rated Current AC3 (A)

Maker

Price €

Electrical Connection

Pg13.5

Max Pressure range (Bar)

0.4

Min Pressure range (Bar)

0.09
