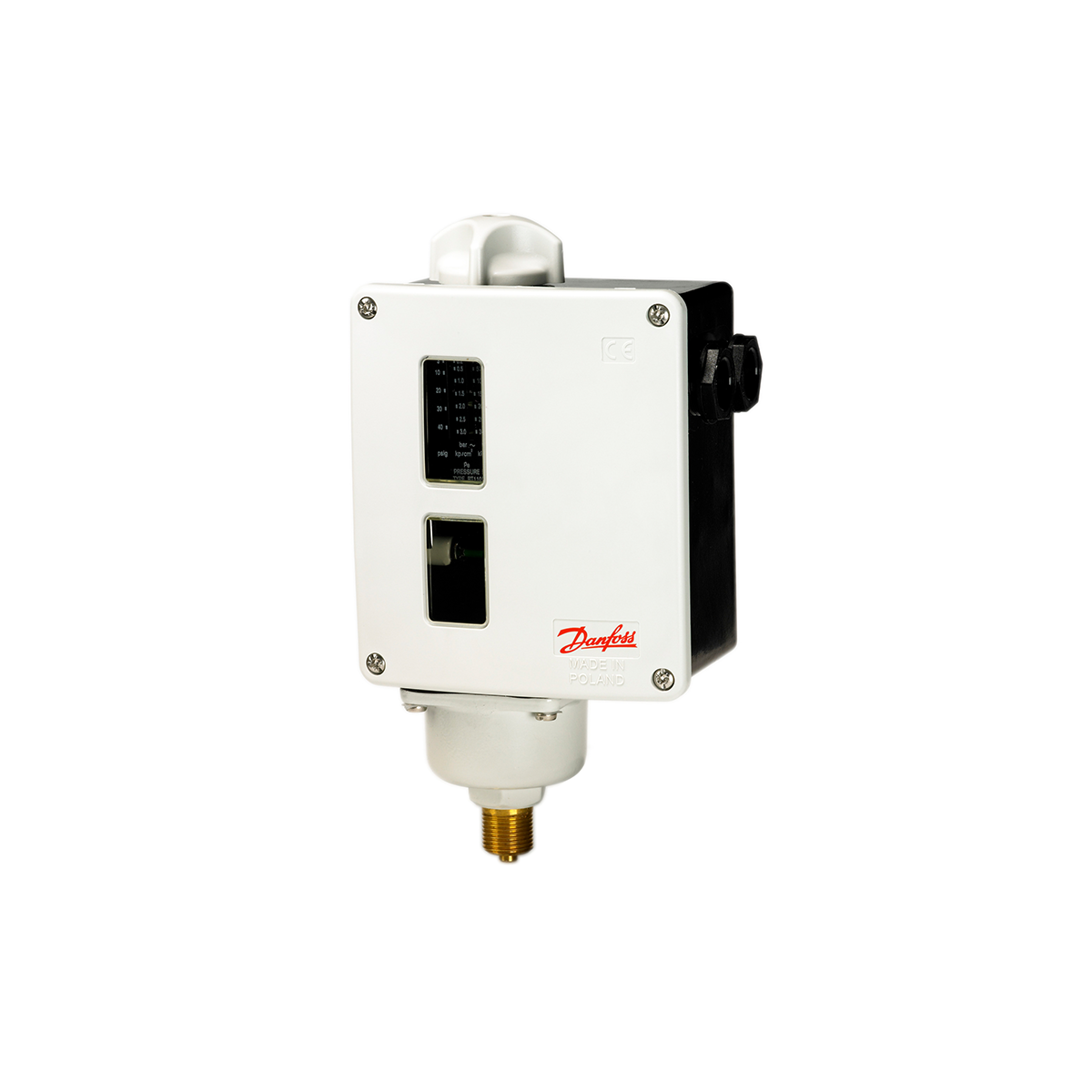

Danfoss RT112 Pressure Switch
0.1 to 1.1 bar

307.87 129.31 Excl. VAT

RT, Pressure switches

Max Reset Danfoss Pressure Switch
Regulating Range: 0.1 to 1.1 bar
Differential Range: 0.07 bar fixed
Max. Working Pressure: 7 bar
Connection Size: 3/8 bsp
Contact Function: SPDT
Reset: MAX

Product Attachment : PDF

Description

Max Reset Danfoss pressure switches are used in general industrial and marine sectors.
The 017-519266 RT112 Max Reset Danfoss pressure switch is part of a series consisting
of a variety of ordinary controls including neutral zone pressure switches, safety pressure
switches for steam boiler plant, and gold plated fail-safe controls for applications in which
safety or economical consequences are critical factors.

Ambient Temp. -50 to 70 °C
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Diff. Range Setting (Min/Max) 0.07 bar
Max Test/Working Pressure 8.0/7.0 bar
Regulation Range 0.10 to 1.10 bar
Pressure Connection Type G – 3/8 Male
Electrical Connection Type Female Screwed Cable Entry DIN 40430 2xPg 13.5
Enclosure Rating IP54
Approval BV, CCC, CE, DNV, EAC, GL, LR, LVD, NKK, PZH, RINA, RMRS, RoHS, RoHS China, TÜV, TYSK
EAN no. 5702423120529

Brand

Danfoss

Additional Information
Weight 1 kg
Dimensions 18 × 13 × 9 cm
Danfoss

Rated Current AC3 (A)

Maker

Price €

Electrical Connection

Pg13.5

Max Pressure range (Bar)

1.1

Min Pressure range (Bar)

0.1
