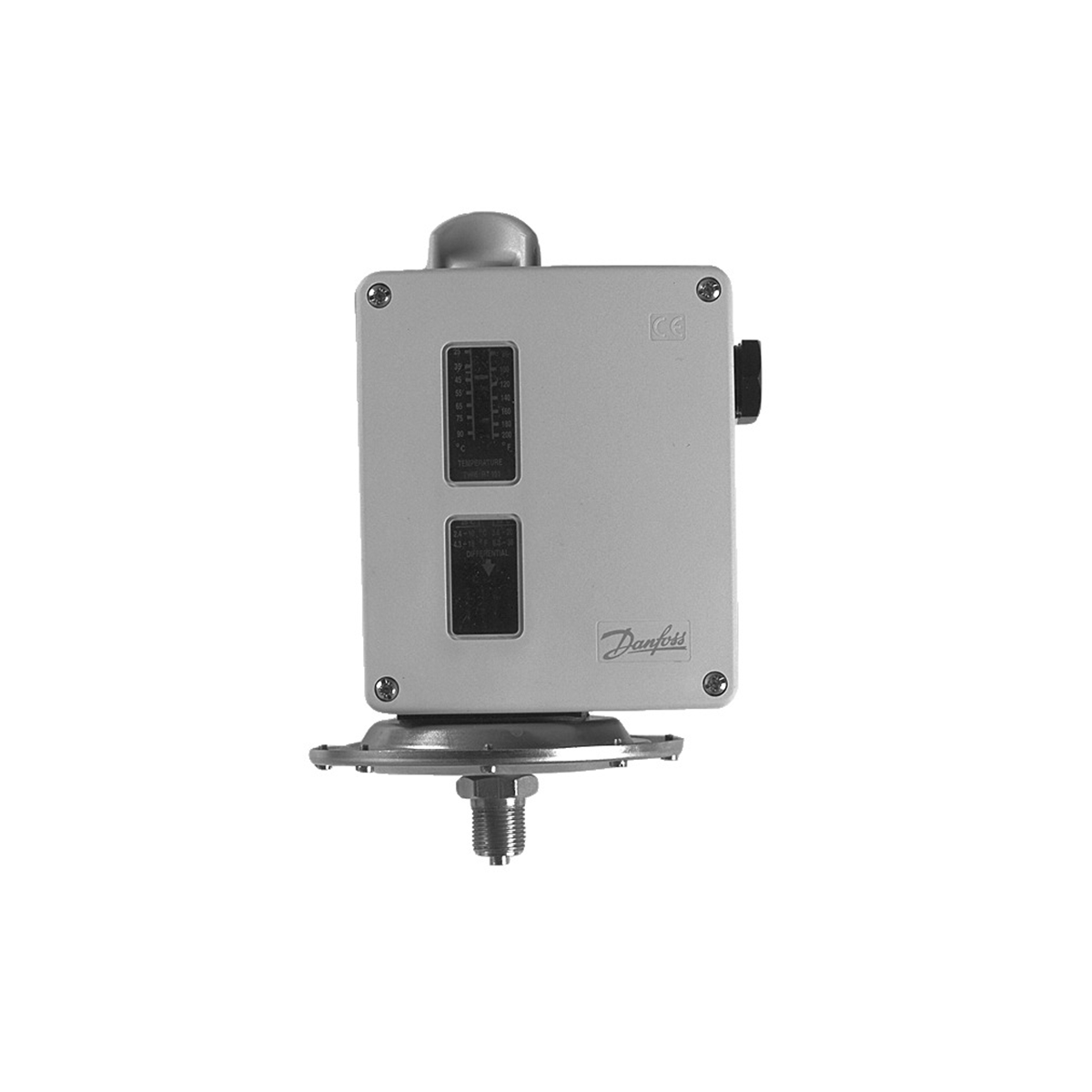

Danfoss RT113 Pressure Switch
0 to 0.3 bar

292.95 123.04 Excl. VAT

Pressure Switch
Low Pressure Danfoss Switch
Regulating Range: 0.0 to 0.3 bar
Differential Range: 0.01 to 0.05 bar
Max. Working Pressure: 0.4 bar
Connection Size: 3/8 bsp
Contact Function: SPDT
Reset: Automatic

Product Attachment : PDF

Description

Low pressure Danfoss switches are used in general industrial and marine sectors.
The 017-519666 RT113 low pressure Danfoss switch is part of a series consisting
of a variety of ordinary controls including neutral zone pressure switches, safety pressure
switches for steam boiler plant, and gold plated fail-safe controls for applications in which
safety or economical consequences are critical factors.

Type Code RT113
Weight 0.878 Kg
Ambient temp. range -10 – 70 °C
Ambient temp. range 14 – 158 °F
Approval BV, CCC, CE, DNV, EAC, GL, LVD, NKK, PZH, RINA, RMRS, RoHS, RoHS China, TYSK
Contact function SPDT
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Diff. 0,01 – 0,05 bar
Diff. 0,10 – 0,70 psi
EAN no. 5702423120550
Electrical conn. Male/Female Female
Electr. conn. size 2xPg 13.5
Electr. spec. standard EN 60947-4/-5
Enclosure rating IP66
Max. test pressure 0,5 bar
Max. test pressure 7 psig
MWP 0,4 bar
MWP 6 psig
Pack format Multi pack
Press. conn. std. ISO 228-1
Press. conn. type G – 3/8 Male
Descript. Pressure control
Prod. Group Switches and thermostats
Prod. name Pressure switch
Pack qty. 9 pc
Reg. range 0,00 – 0,30 bar
Regulation range Pe 0,00 – 4,40 psig
Reset Auto

Brand

Danfoss

Additional Information
Weight 1 kg
Dimensions 16 × 15 × 40 cm
