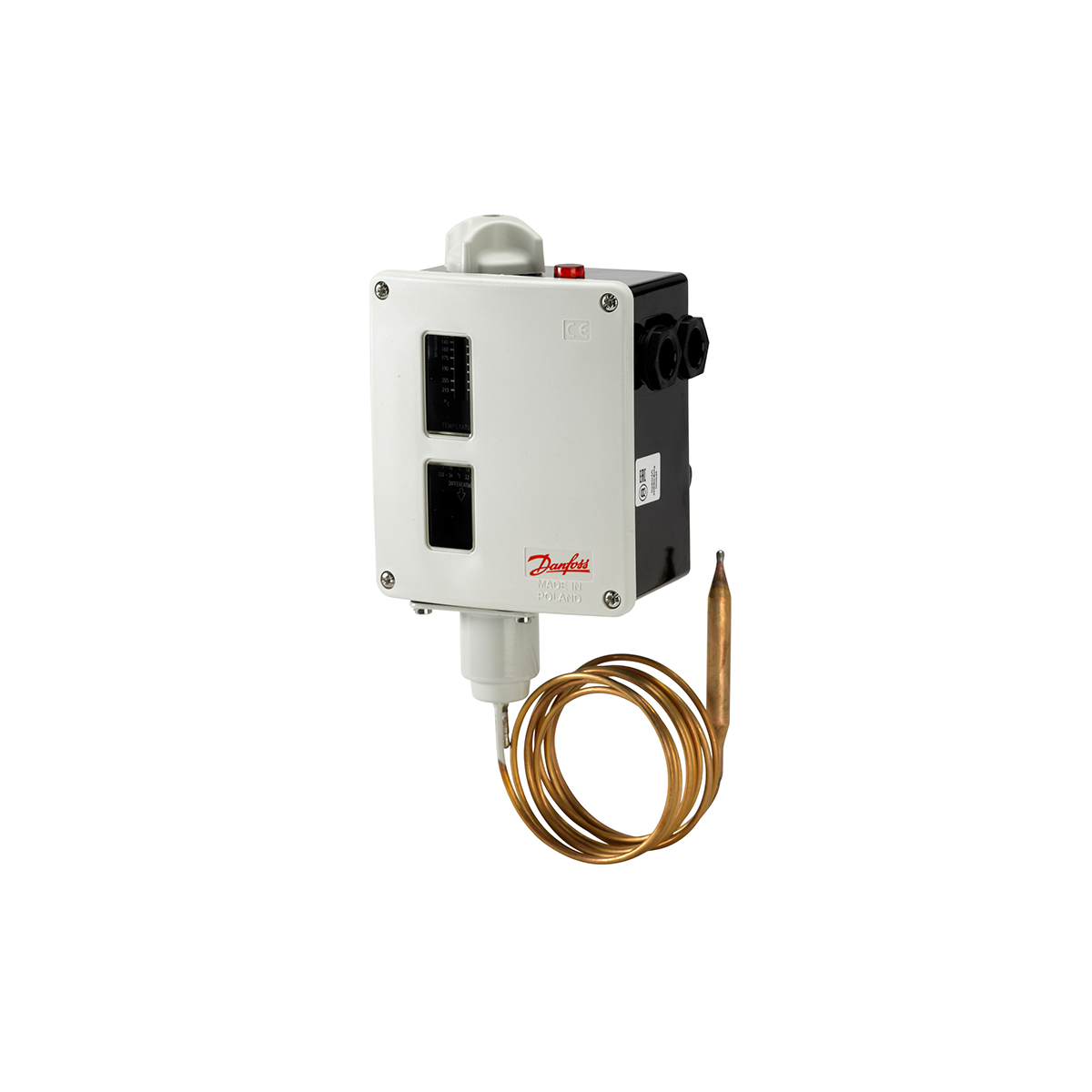

Danfoss RT120 Temperature Switch
Range 120 to 215°C

278.18 116.84 Excl. VAT

Temperature Switch

Danfoss Temperature Switch
Temperature Range: 120 to 215°C
Temp. Differential Min. Range: 7 to 30°C
Temp. Differential Max Range: 1.8 to 9°C
Max. Sensor Temperature: 260°C
Sensor Type: Remote Sensor With Capillary Tube
Capillary Length: 2000mm
Contact Function: SPDT
Reset: Automatic
Sensor Size: 9.5ø x 80mm

Product Attachment : PDF

Description

Danfoss temperature switches are used in general industrial and marine sectors.
The 017-520866 RT120 Danfoss temperature switch is part of a series consisting
of a variety of ordinary room temperature switches and remote sensor temperature
switches including neutral zone temperature switches. 017-520866 RT120 temperature
switches are generally recommended for applications where safety or economical
consequences are critical factors.

Type Code RT120
Weight 0.850 Kg
Ambient temp. range -50 – 70 °C
Ambient temp. range -58 – 158 °F
Approval CCC, CE, DNV, EAC, GL, LVD, NKK, PZH, RMRS, RoHS, RoHS China, TYSK
Cap. tube length 78 3/4 in
Cap. tube 2.000 mm
Charge type Partial
Contact function SPDT
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Diff./max. range 1,8 – 9,0 °C
Diff./min. range 7,0 – 30,0 °C
Diff. type Adjustable
EAN no. 5702423120659
Electrical conn. Male/Female Female
Electr. conn. size 2xPg 13.5
Electr. spec. standard EN 60947-4/-5
Enclosure rating IP66
Glow lamp No
Max. Sensor temp. 260 °C
Max. Sensor temp. 500,0 °F
Pack format Multi pack
Descript. Temperature Control
Prod. Group Switches and thermostats
Prod. name Thermostat
Pack qty. 15 pc
Reset Auto
Sensor pocket min. 4 13/32 in
Sensor pocket min. 112 mm
Sensor (diameter x length) 3/8 x 3 1/8 in
Sensor (diameter x length) 9.5 X 80 mm
Sensor Remote sensor
Temp. range 120 – 215 °C
Temp. range 248 – 419 °F

Brand

Danfoss

Additional Information
Weight 1.1 kg
Dimensions 12 × 16 × 26 cm
Danfoss

size(f)

Type

Maker

Price €

Electrical Connection

Pg13.5

Sensor Length (mm)
Temperature Range (°C)

120..215

Capillary tube length (mm)

2000
