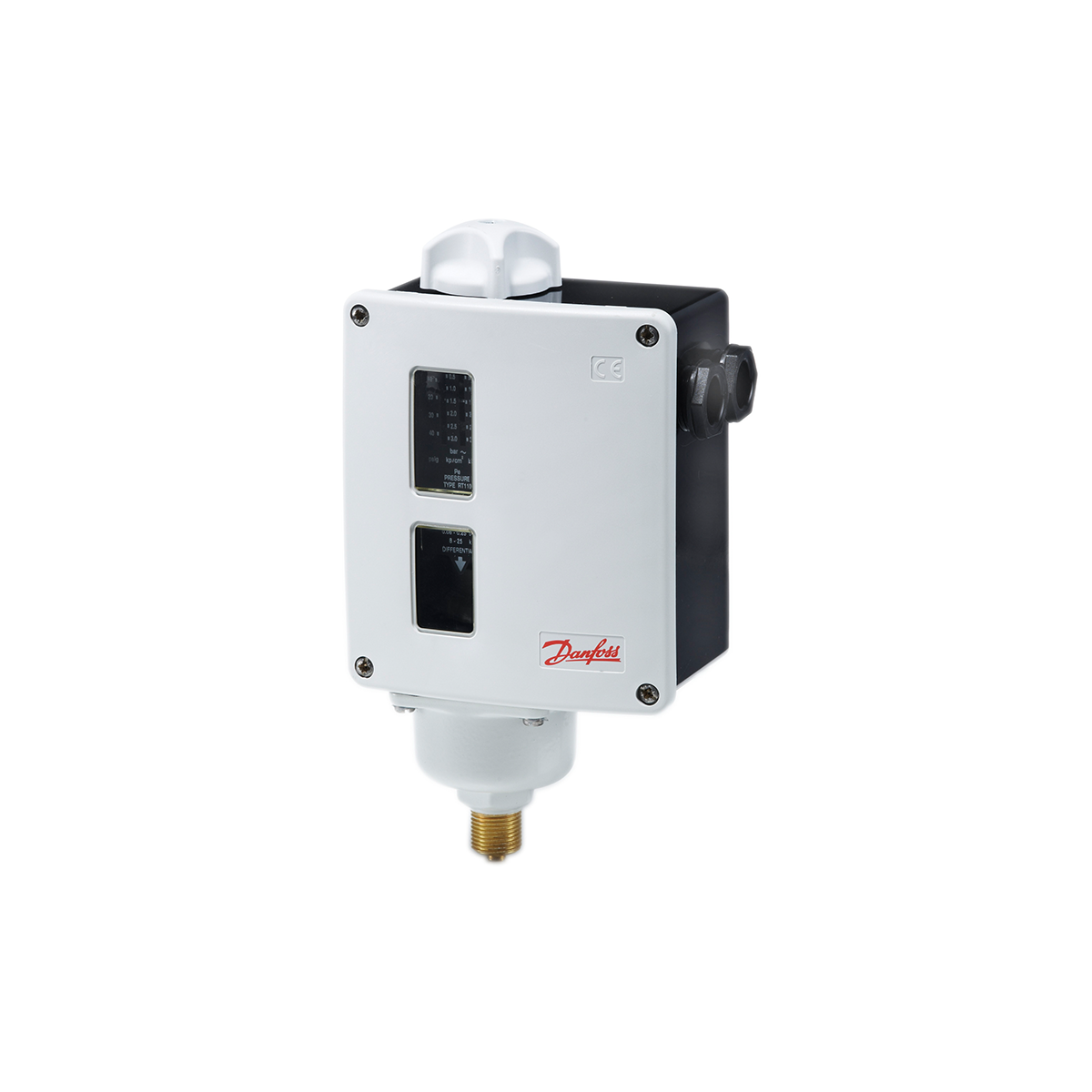

Danfoss RT200 Pressure Switch M/15
0.2 to 6.0 bar

233.68 98.15 Excl. VAT

RT, Pressure switches
Danfoss Pressure Switch
Regulating Range: 0.2 to 6.0 bar
Differential Range: 0.25 to 1.20 bar
Max. Working Pressure: 22 bar
Connection Size: 3/8 bsp
Contact Function: SPDT
Reset: Automatic

Product Attachment : PDF

Description

Danfoss pressure switches 017-523766 RT200 are used in general industrial and marine sectors.
The 017-523766 RT200 Danfoss pressure switch series consist of a variety of ordinary controls
including neutral zone pressure switches, safety pressure switches for steam boiler plant, and gold
plated fail-safe controls for applications in which safety or economical consequences are critical factors.

Ambient Temp. -50 to 70 °C
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Diff. Range Setting (Min/Max) 0.25 to 1.20 bar
Max Test/Working Pressure 25.0/22.0 bar
Regulation Range 0.20 to 6.00 bar
Pressure Connection Type G – 3/8 Male
Electrical Connection Type Female Screwed Cable Entry DIN 40430 2xPg 13.5
Enclosure Rating IP66
Approval BV, CCC, CE, DNV, EAC, GL, KR, LR, LVD, NKK, PZH, RINA, RMRS, RoHS, RoHS China, TYSK
EAN no. 5702423120918

Brand

Danfoss

Additional Information
Weight 1 kg
Dimensions 22 × 9 × 15 cm
Danfoss

Special Function

Rated Current AC3 (A)

Maker

Price €

Electrical Connection

Pg13.5

Max Pressure range (Bar)

6

Min Pressure range (Bar)

-0.2
