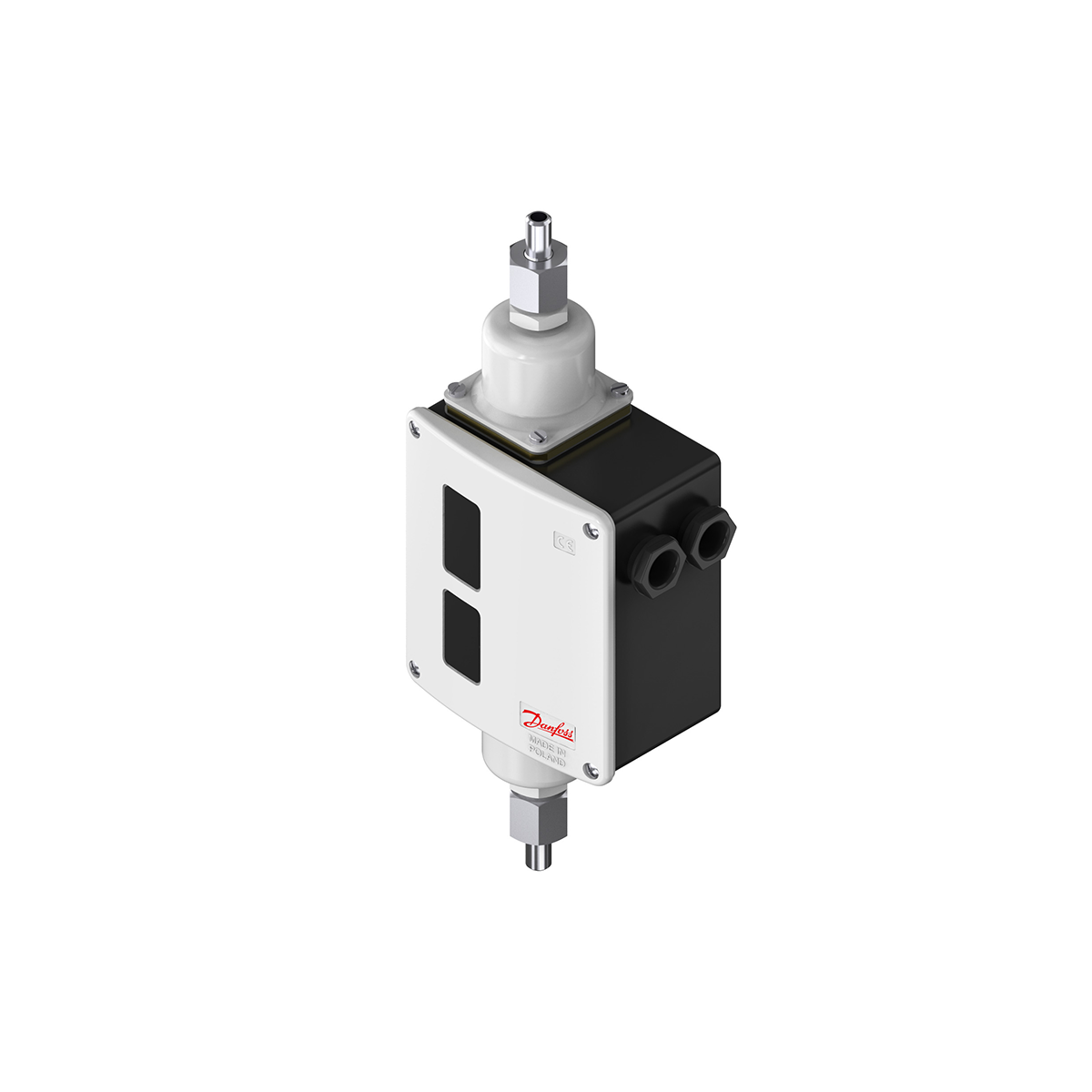

Danfoss RT262A Pressure Switch
0.1 to 1.5 bar

404.31 222.37 Excl. VAT

SKU: 017D002566 Category:

Danfoss Differential Pressure Switch
Regulating Range: 0.1 to 1.5 bar
Differential Range: 0.1 bar
Max. Working Pressure: 11 bar
Connection Size: 3/8 bsp
Contact Function: SPDT
Reset: Automatic

Product Attachment : PDF

Description

Danfoss differential pressure switches are used in general industrial and marine sectors.
The RT differential pressure switches series consist of a variety of switches for applications
in which safety or economical conAMBIENT TEMP. -50 – 70 °C
CONTACT RATING AC1=10 A, 400 V
CONTACT RATING AC15=3 A, 400 V
CONTACT RATING AC3=4 A, 400 V
CONTACT RATING DC13=12 W, 220 V
CONTACT RATING LR=28 A, 400 V
DIFF. PRESS. SETTING RANGE 0,10 – 1,50 bar
DIFF. PRESS. SETTING RANGE 0,01 – 0,15 MPa
DIFF. PRESS. SETTING RANGE 1,5 – 21,8 psi
EAN NO. 5702428042802
ELECTRICAL CONN. MALE/FEMALE Female
ELECTR. CONN. Screwed cable entry
ELECTR. CONN. SIZE 2xPg 13.5
ELECTR. CONN. STANDARD DIN 40430
ELECTR. SPEC. STANDARD EN 60947-4/-5
ENCLOSURE RATING IP66
MAX. TEST PRESSURE 13,0 bar
MAX. TEST PRESSURE 188,0 psig
MWP 11,0 bar
MWP 160 Psig
OPERAT. RANGE LP SIDE -1 – 9 bar
APPROVAL CCC, CE, EAC, KR, LVD, PZH, RINA, RMRS, RoHS, RoHS China, TYSKsequences are critical factors.

Additional Information
Weight 1 kg
Dimensions 12 × 16 × 26 cm
Danfoss

Special Function

Rated Current AC3 (A)

Maker

Price €

Electrical Connection

Pg13.5

Max Pressure range (Bar)

1.5

Min Pressure range (Bar)

0.1
