Description

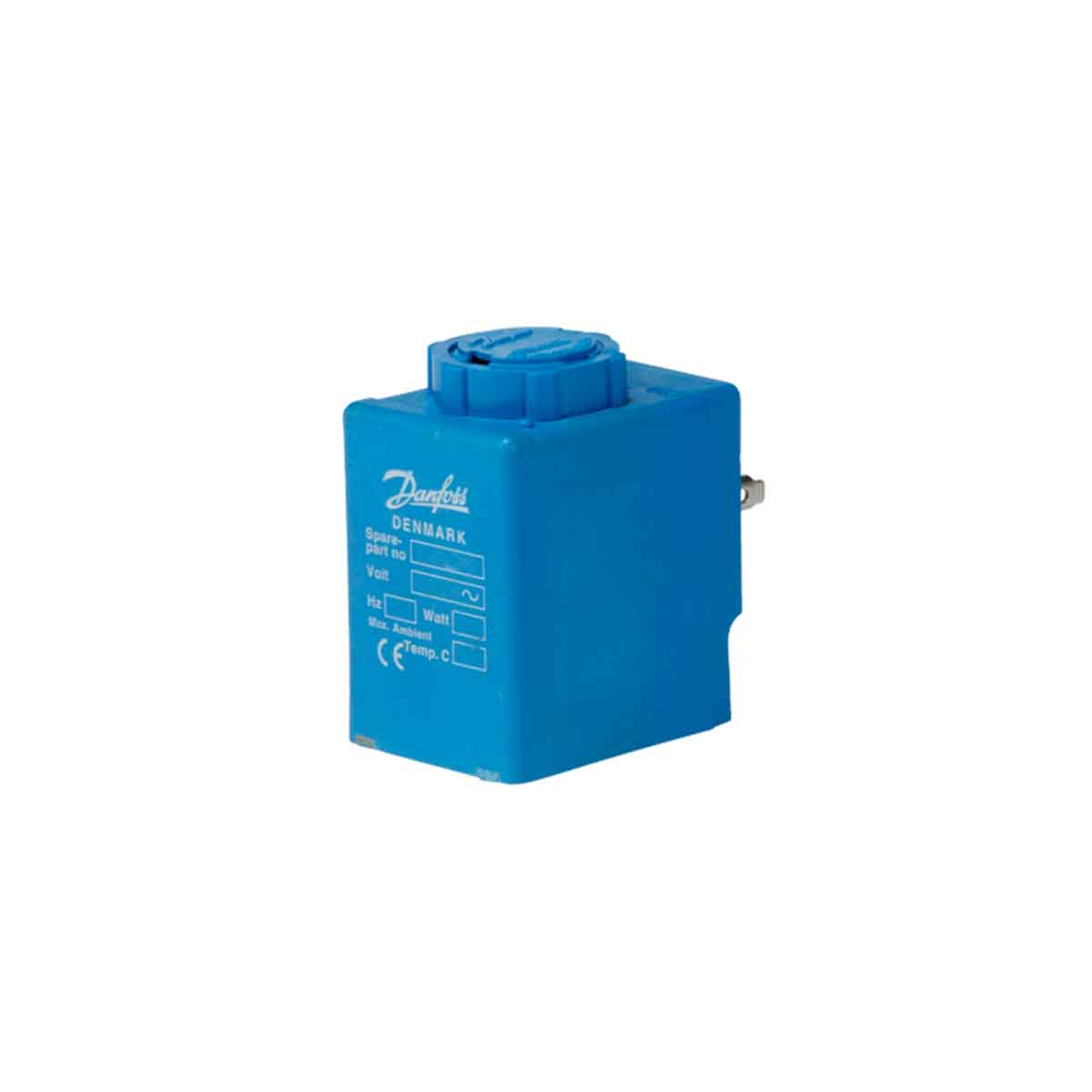

Danfoss coil BA115B 115V 60Hz 9W Danfoss coil for non-demanding applications, with IP65, for valve range B
• Windings of class H insulated wire moulded in the coil body
• Ambient temperature: Up to +40°C
• IP 00 version with DIN 43650 A spade connectors
• IP 20 version with protective cap
• IP 65 version with mounted cable plug

Actuator size 13.5 mm
Ambient temp. -40 to 40 °C
Power consumpt. @60Hz 12W
Supply @60Hz 115V
Enclosure rating IP00
Type designation BA115B
EAN no. 5702423009466
