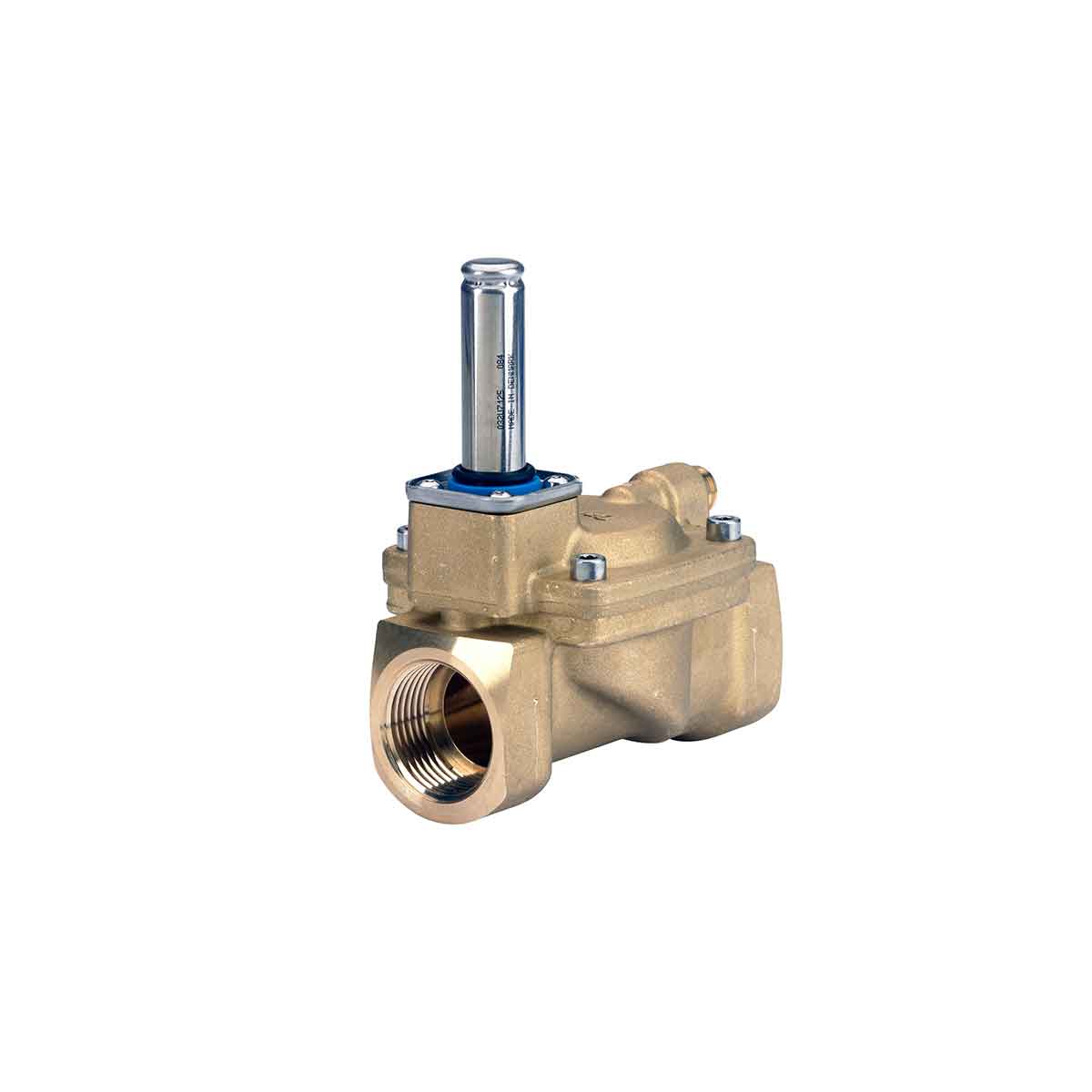

Danfoss Solenoid Valve 032U7172
€121.44 Excl. VAT
Solenoid Valve Water/Bribe/Oil/Air| Pe: 0.3 ~ 16 Bar | 1″ NC Function
Available on backorder
Description
The Danfoss 032U7172 is an EV220B series 2/2-way, servo-operated, Normally Open (NO) solenoid valve body. This is a pilot-operated valve that uses the pressure of the medium to operate once a minimum differential pressure is reached.
Additional Information
| Weight | 1 kg |
|---|---|
| Dimensions | 25 × 25 × 15 cm |
| Orifice size: | 25 mm (DN 25). |
| Kv value: | 11 m³/h. |
| Maximum Working Pressure: | 16 bar. |
| Ambient Temperature max.: | 80°C (176°F). |
| Differential Pressure Range: | 0.3–16 bar (with AC or DC coils). |
| Function: | Normally Closed (NC). |
| Connections: | G 1 inch internal thread (ISO 228-1 standard). |
| Body Material: | Brass. |
| Seal Material: | NBR (Nitrile Butadiene Rubber). |
| Media recommendations: | Water, brine, oil, and air. |
| Medium Temperature Range: | -10°C to 90°C (14°F to 194°F). |
| Actuator Size: | 13.5 mm (Actuator B). |
| Approvals: | DNVGL-CG-0339 and others. |
Brand
Danfoss
