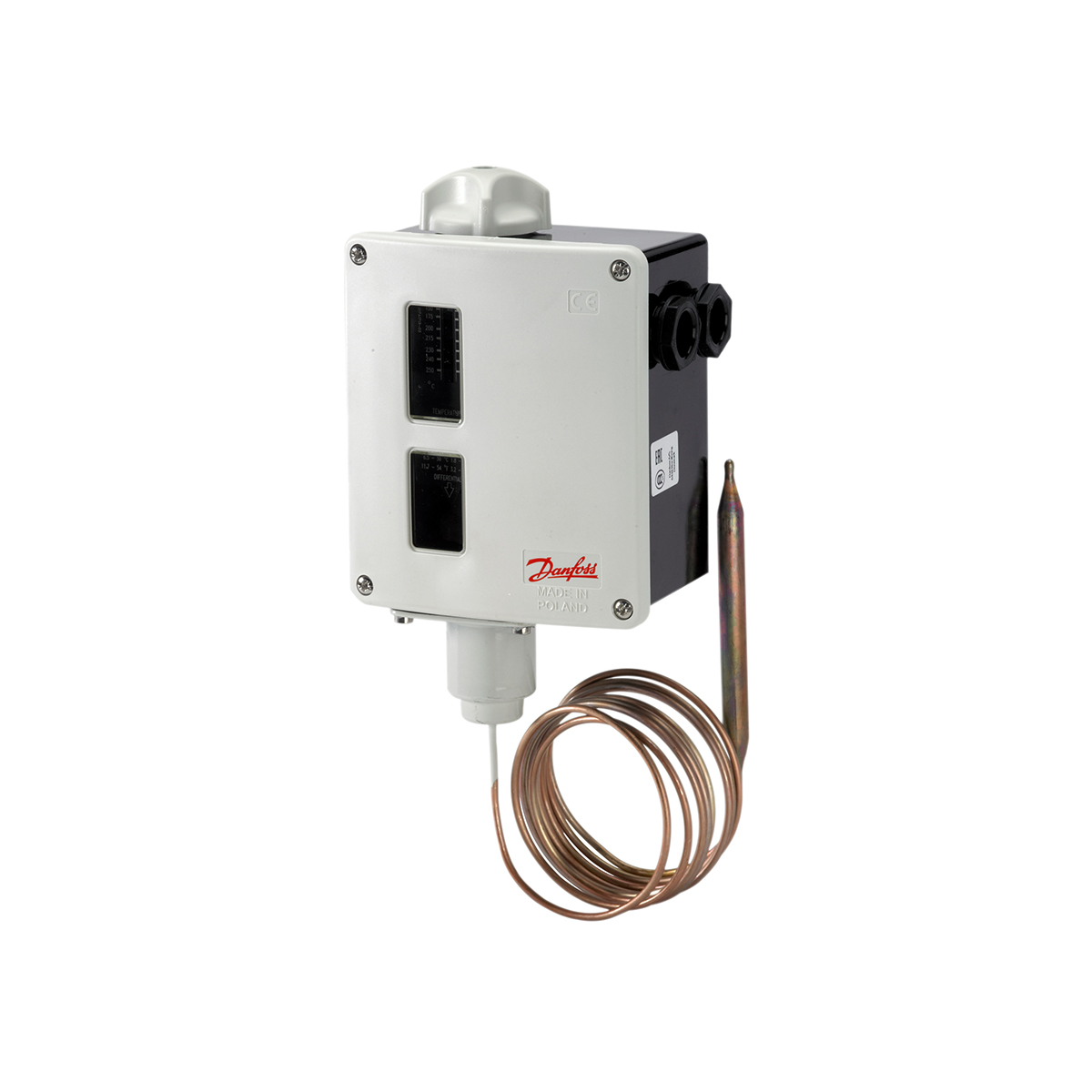

Danfoss Thermostat 017-501466
€99.12 Excl. VAT
Temperature Switch| Te Range: -25 ~ 15°C | Tube Length 2000[mm]
Available on backorder
Description
The Danfoss 017-501466 is an RT3 series Temperature Switch (Thermostat).This switch is designed for industrial and marine refrigeration applications.
Additional Information
| Weight | 1.2 kg |
|---|---|
| Dimensions | 25 × 25 × 15 cm |
| Temperature Range: | -25°C to 15°C (-13°F to 59°F). |
| Differential Range: | Adjustable, from 2.8°C to 10°C on the minimum setting and 1°C to 4°C on the maximum setting. |
| Reset Function: | Automatic. |
| Contact Function: | SPDT (Single Pole Double Throw). |
| Sensor Type: | Remote bulb with a capillary tube. |
| Capillary Tube Length: | 2000 mm (2 meters). |
| Sensor Size (Ø x L): | 9.5 mm x 80 mm (3/8 x 3 1/8 in). |
| Max. Sensor Temperature: | 150°C (302°F). |
| Ambient Temperature Range: | -50°C to 70°C (-58°F to 158°F). |
| Electrical Connection: | Screwed cable entry, 2 x Pg 13.5. |
| Enclosure Rating: | IP66. |
| Approvals: | BV, CCC, CE, DNV, EAC, GL, KR, LR, and others. |
Brand
Danfoss
