Description

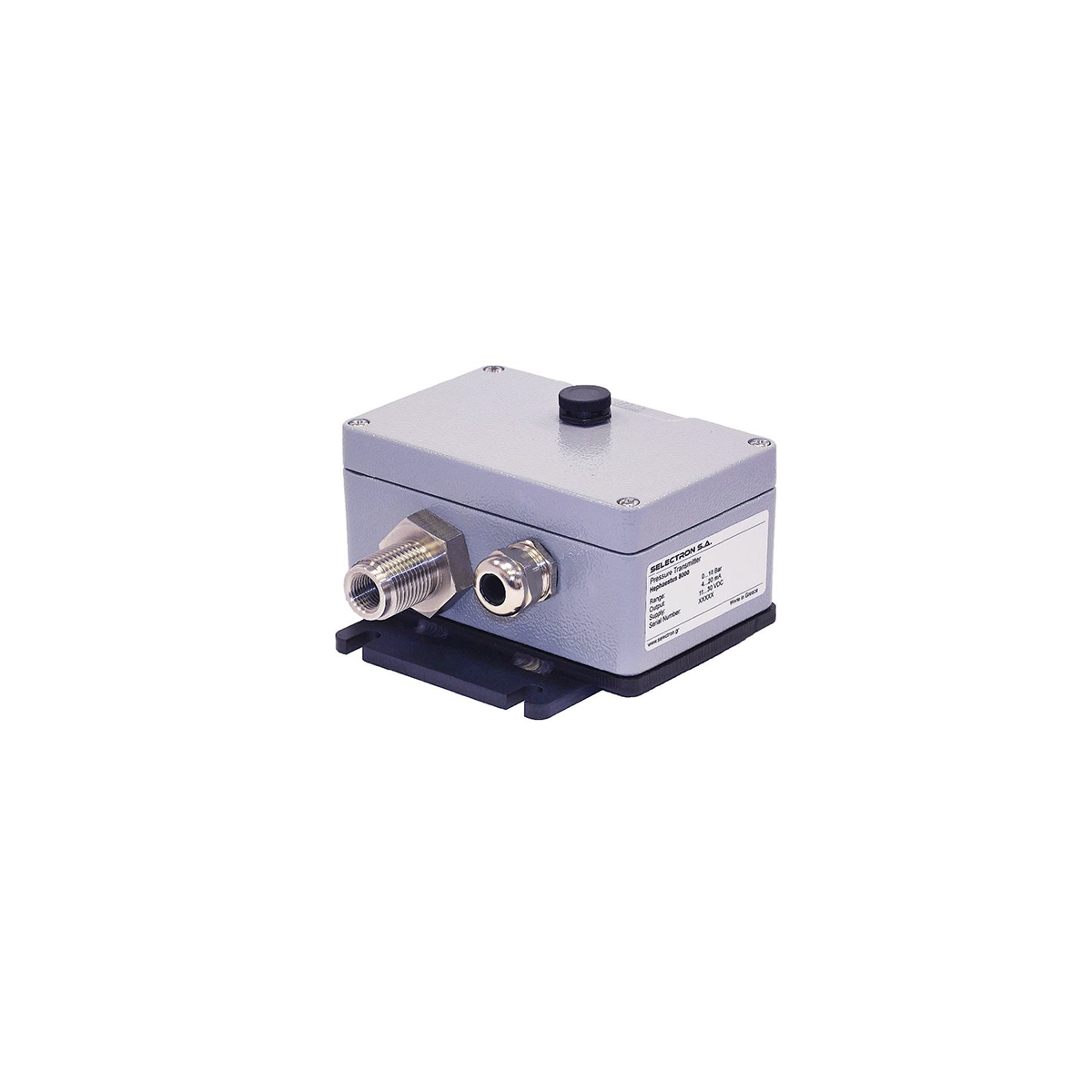

The HEPHAESTUS 8000 pressure transmitter by SELECTRON S.A. is a high-quality, industrial-grade device designed for accurate and stable pressure and level measurement in a variety of challenging environments, including marine, industrial automation, and process control.
Additional Information
| Weight | 1 kg |
|---|---|
| Dimensions | 24 × 18 × 15 cm |
| Measurement principle: | Hydrostatic pressure |
| Output signal: | 2-wire, 4-20mA current loop (Adjustable) |
| Power supply: | 11-30 VDC (Reverse voltage protection) |
| Accuracy: | <±0.05% FS BFSL |
| Ingress protection: | IP65 |
| Media temperature: | 40 °C…+135 °C |
| Pressure ranges: | up to 50 Bar |
| Versions: | Absolute and gauge |
| Construction material: | Stainless steel housing and ceramic diaphragm |
| Approvals: | CE, optional ATEX Intrinsically Safe |
| Cable: | Vented and shielded polyurethane cable, length on demand |
Brand
Selectron
