Description

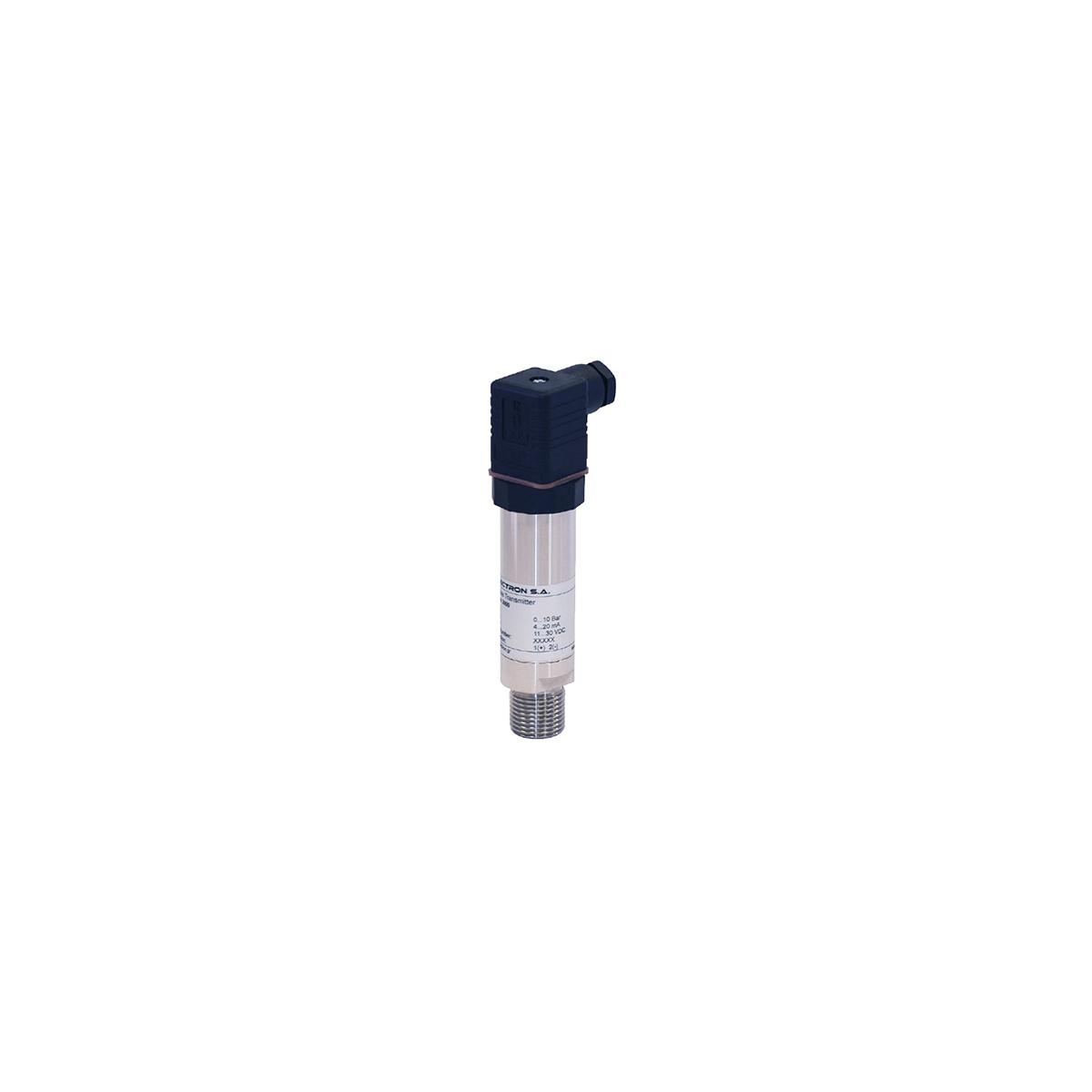

The HERMES 3000 pressure transmitter by SELECTRON S.A. is a high-quality, industrial-grade device designed for accurate and stable pressure and level measurement in a variety of challenging environments, including marine, industrial automation, and process control.
Additional Information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 21 × 15 × 15 cm |
| Measurement principle: | Gases, Vapors, Liquids |
| Output signal: | 2-wire, 4-20mA current loop (Adjustable) |
| Power supply: | 11-30 VDC (Reverse voltage protection) |
| Accuracy: | <±0.05% FS BFSL |
| Ingress protection: | IP65 |
| Media temperature: | 40 °C…+135 °C |
| Pressure ranges: | up to 50 Bar |
| Electrical connection: | DIN EN 175 301-803-A |
| Construction material: | Stainless steel housing and ceramic diaphragm |
| Process connection options: | BSP G 1/4", 3/8”, 1/2",3/4”, 1”, M 20×1.5 EN 837, Custom |
| Approvals: | CE, optional ATEX Intrinsically Safe |
| Calibration: | According to customer demand |
| Cable: | Vented and shielded polyurethane cable, length on demand |
Brand
Selectron
