Description

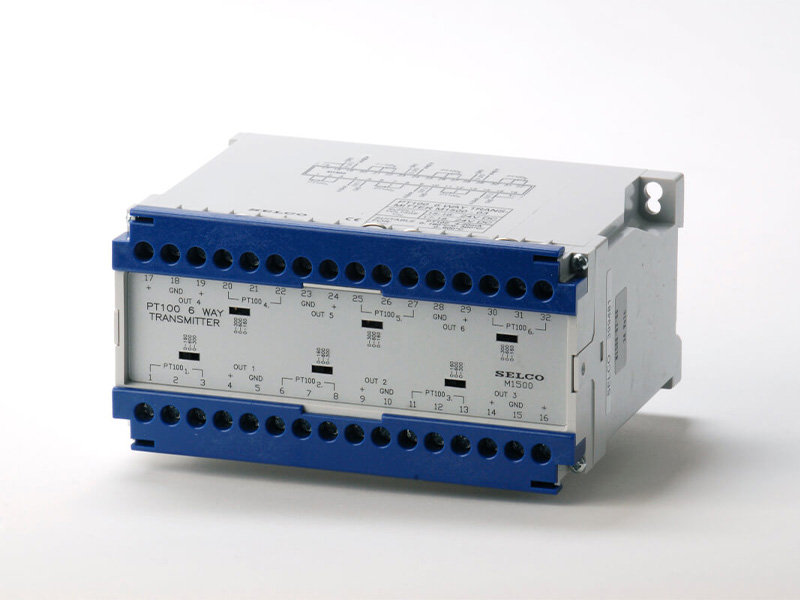

The M1500 provides a cost effective solution
and includes 6 current transmitters in one box
to be connected to temperature resistors. The
unit can be used in connection with the
SELCO M3000 Analog Alarm Annunciator • 6 inputs for PT100 resistors
• 6 current outputs 4-20mA according to DIN
EN 60751 & IEC 751
• Can be used together with the SELCO
M3000 Analog Alarm Annunciator
• Cost effective and highly reliable compact
design
• 50 hours burn-in before final test
• Operating temperature range:
-20°C to +70°C
• Flame retardant enclosure
• DIN rail and screw mounting
