T3500
Sale

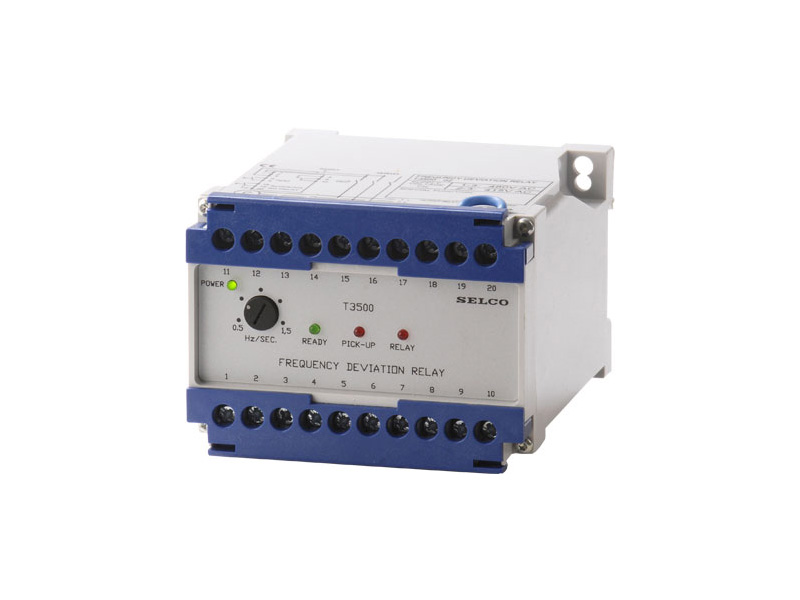

SELCO T3500.0010 Frequency Deviation Relay. 230V

1,136.45 Excl. VAT

SKU: T3500.0010 Category: Tag:

SELCO-FREQUENCY DEVIATION RELAY – 230V

Product Attachment : PDF

Available on backorder

Description

The SELCO T3500 Frequency Deviation Relay will, based on a simple AC voltage measurement, monitor the change in frequency over a time period of one second.

The T3500 Pick up LED will ignite as soon as the voltage frequency has changed more than 0.5 Hz to 1.5 Hz per second, while the internal relay (and the relay indication LED) activates after the frequency deviation has existed for more than 100 milliseconds.

The 100 millisecond delay can be omitted by bridging two external connection terminals. An alternative delay of 50 milliseconds can be obtained by inserting a resistor between the two terminals. The Pick Up and Relay LED will ignite simultaneously if the delay is omitted.
• Acts on df/dt
• Programmable delay
• External blocking
• Loss of mains application
• Marine approved

Additional Information
Weight 2.20 kg
Dimensions 30 × 20 × 20 cm
Type

Power Supply

Maker

Price €

Brand

Selco
