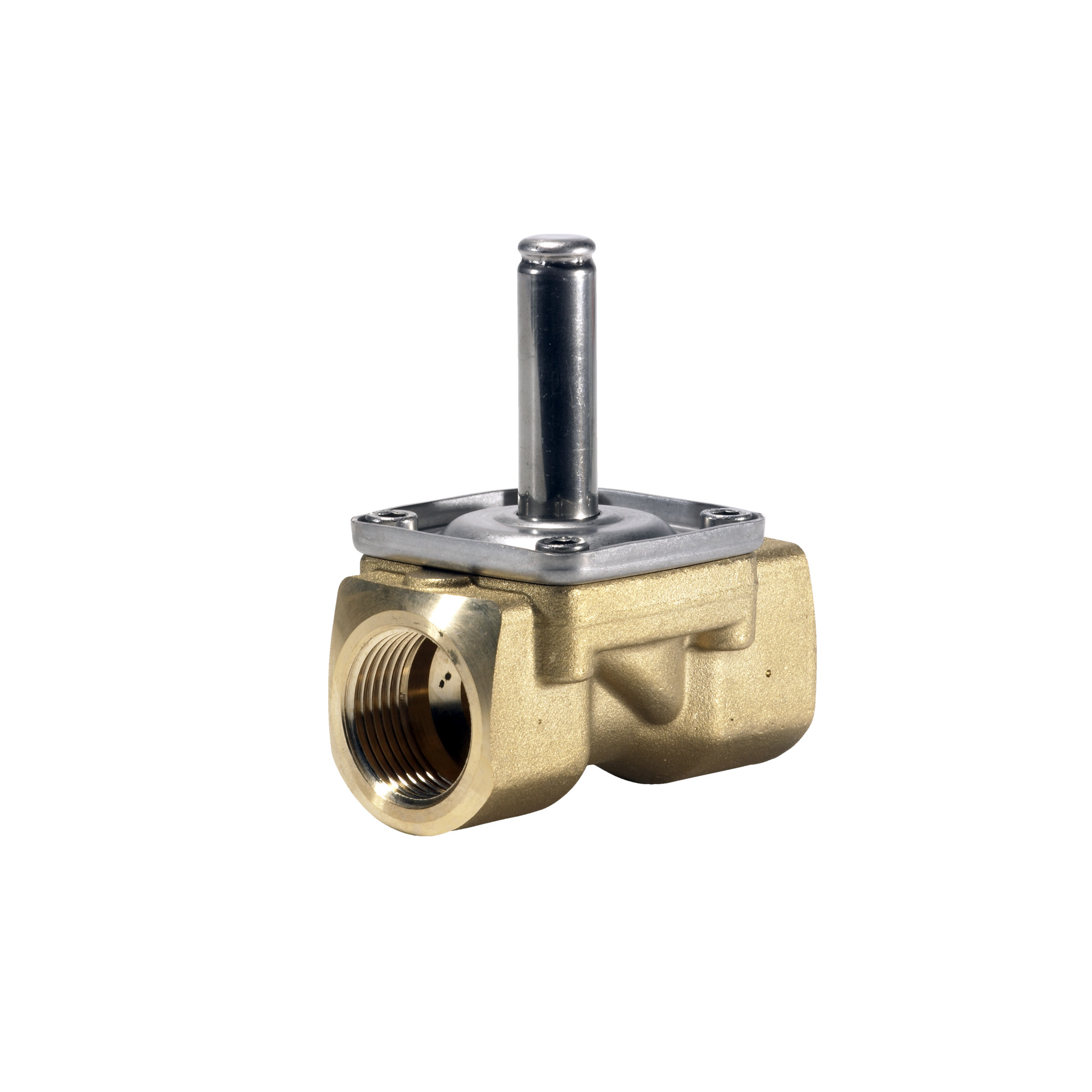

Danfoss EV220B 22B G 1E NC000 Solenoid Valve
€123.36 Excl. VAT
EV220B (6-22 series), Servo-operated 2/2-way solenoid valves
Danfoss EV220B 22B G1E NC 000 Solenoid Valve
Body Only
Coil Types: BA, BD, BB, BG
Function: 2-Way NC
Body Material: Brass
Seal Material: EPDM
Pipe Size: G1
Orifice: 22mm
Temp Range: -30 to 100°C
Differential Pressure Ranges:- 0.3 to 10 Bar
Product Attachment : PDF
Available on backorder
Description
Danfoss solenoid valve EV220B 6-22 is a direct servo-operated 2/2-way solenoid valve program with connections from 1/4″ to 1″.
This program is especially for OEM applications demanding a robust solution and moderate flow rates.
• 2/2-way
• Servo-operated
• DN 6 – DN 22
• Brass or DZR (de-zincification resistant) brass valve body
• NC (normally closed) and NO (normally open) versions
• ISO 228/1 or NPT thread connection (EVSI and EVSI-U)
No. of Ways 2/2
Connection Internal G1
Actuator size 13.5 mm
Ambient Temp. Max. 80 °C
Medium Temp Range -30 to 100 °C
Diff. Pressure 0.3 to 10 bar
Max Working Pressure 10.0 bar
Function NC
KV Value 6.000 m^3/h
Orifice Size 22.00 mm
EAN no. 5702423017751
Additional Information
| Weight | 4 kg |
|---|---|
| Dimensions | 40 × 40 × 20 cm |
| Danfoss | |
| Type | |
| Specification | |
| Maker | |
| Price € | |
| Actuator size (mm) | 13.5 |
| Orifice Size (mm) | 22 |
| Max Diff. Pressure (Bar) | 10 |
| Min Diff. Pressure (Bar) | 0.3 |
| No. of Ways | 2/2 |
Brand
Danfoss
