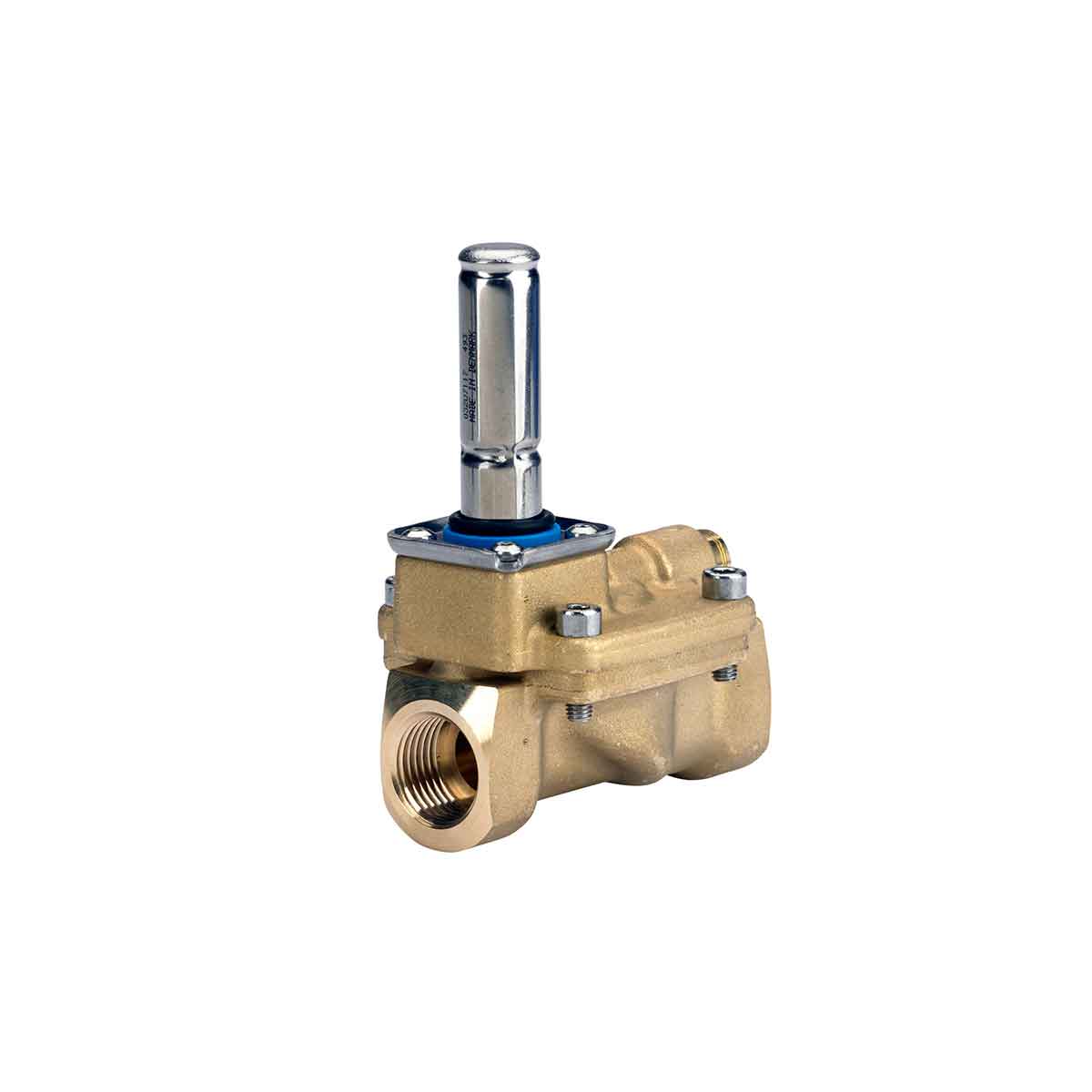

Danfoss EV224B 15B G 12N NO000 Solenoid Valve
€191.12 Excl. VAT
Danfoss Solenoid Valve EV224B 15mm NO G½ Brass NBR
Body Only
Coil Types: BB, BE
Function: 2-Way Normally Open
Body Material: Brass
Seal Material: NBR
Pipe Size: G1/2
Orifice: 15mm
Kv m³/h: 4
Temp Range: Ambient +80°C, Medium air up to 60°C
Differential Pressure Ranges:- 0.3 to 40 Bar (AC)(DC) Coils
EV224B, Servo-operated 2/2-way solenoid valves for high pressure
Product Attachment : PDF
Available on backorder
Description
Danfoss EV224B is a high pressure indirect servo-operated 2/2-way solenoid valve with working pressure up to 40 bar,
medium temperature up to 60 °C and available in NC and NO versions.
Built-in pilot filter as standard, adjustable closing time, enclosures up to IP67 (depending on coil) ensure a reliable
and satisfactory function.
No. of Ways 2/2
Connection Internal G 1/2
Actuator size 13.5 mm
Ambient Temp. Max. 50 °C
Medium Temp Range -10 to 60 °C
Diff. Pressure 0.3 to 40 bar
Max Working Pressure 40.0 bar
Function NO
KV Value 4.000 m^3/h
Orifice Size 15.00 mm
EAN no. 5702423163915
Additional Information
| Weight | 4 kg |
|---|---|
| Dimensions | 40 × 40 × 20 cm |
| Danfoss | |
| Type | |
| Specification | |
| Maker | |
| Price € | |
| Actuator size (mm) | 13.5 |
| Orifice Size (mm) | 15 |
| Max Diff. Pressure (Bar) | 40 |
| Min Diff. Pressure (Bar) | 0.3 |
| No. of Ways | 2/2 |
