Description

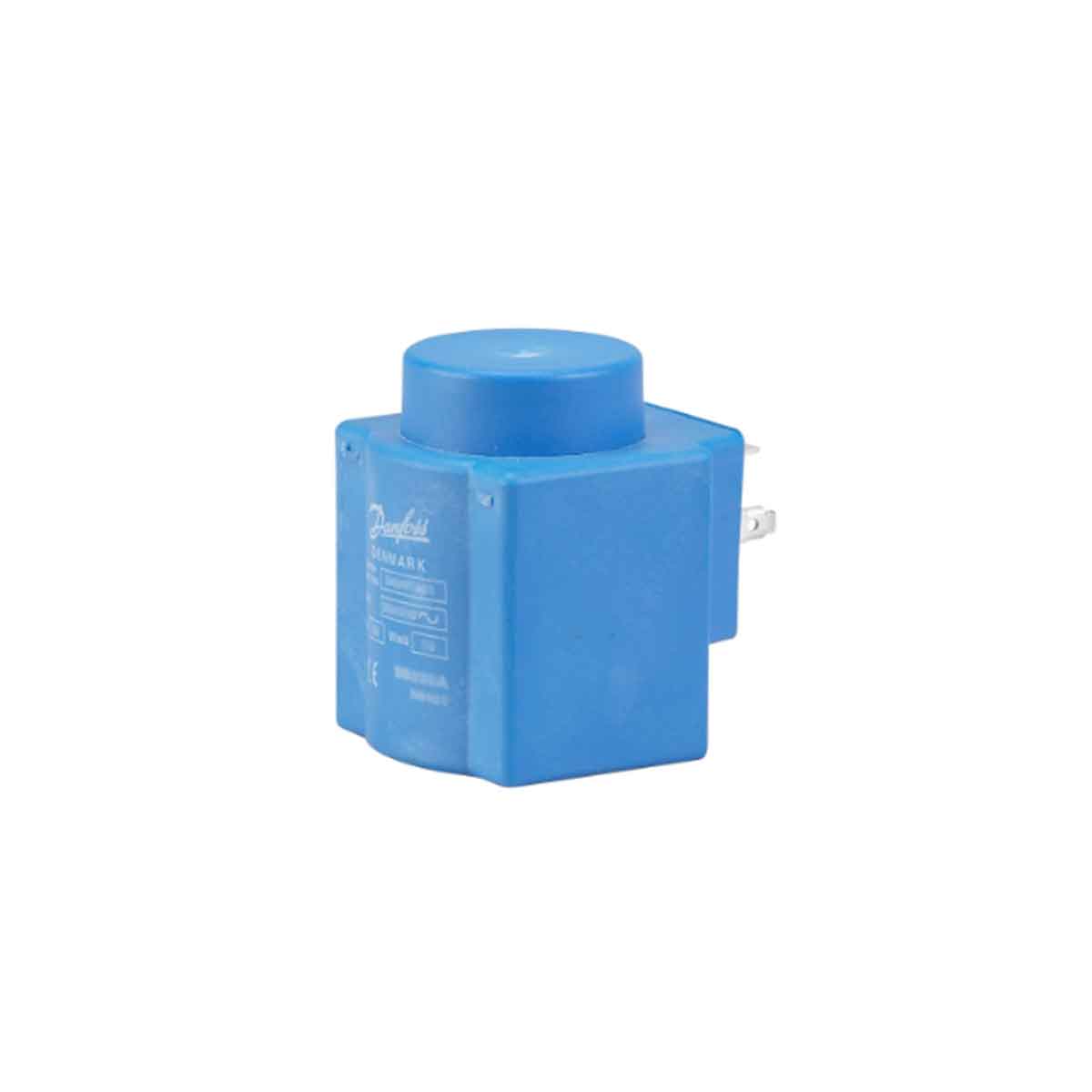

Spare Coil for demanding applications, with IP65, for valve range B, 10W ac / 18W dc
• Clip-on system for fast, easy fitting and removal
• Windings of class H insulated wire moulded in the coil body
• Ambient temperature: Up to +80°C
• IP 00 version with DIN 43650 A spade connectors
• IP 20 version with protective cap
• IP 65 version with mounted cable plug

Type Code BB230CS
Weight 0.258 Kg
Actuator size 13.5 mm
Ambient temp. -40 – 50 °C
Ambient temp. -40 – 122 °F
Coil conn. DIN Spade
Colour BLUE
EAN no. 5702428027311
Enclosure rating IP00
Freq. 50/60 HZ
Identical prod. 018F8363
Pack format Multi pack
Power consumpt. 50Hz/DC 16,0 W
Power consumpt. 60Hz 13,0 W
Power consumpt. 50Hz 31 VA
Power consumpt. 60Hz 24 VA
Prod. group Solenoid valves
Prod. name Solenoid coil
Pack qty. 50 pc
Spare part code no. 018F7363
Supply volt. 230 V
Supply voltage 50Hz Max 230 V
Supply voltage 60Hz Max 230 V
Type designation BB230CS
