Sale

Danfoss

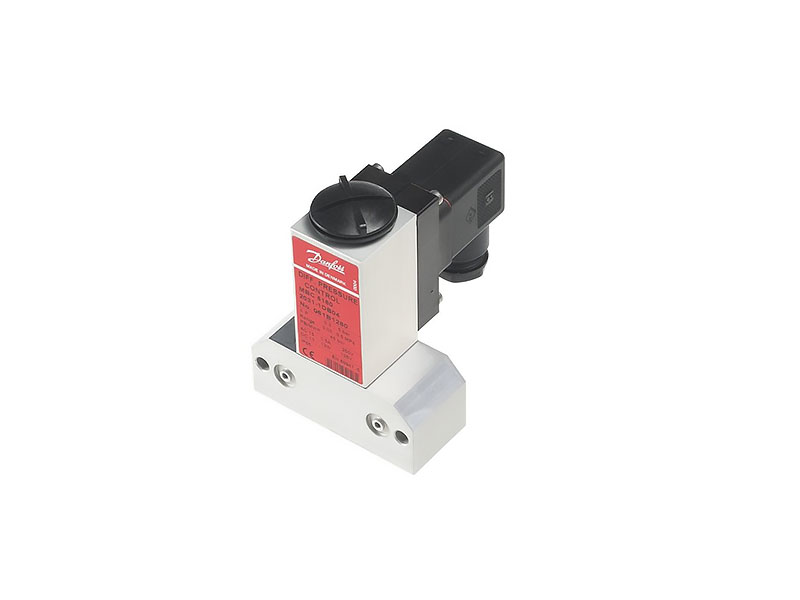

MBC 5180-2031-2DB04
Diff. Pressure Switch
0 to 30 bar

610.82 256.54 Excl. VAT

MBC 5180, Block-type differential pressure switches for marine applications

MBC 5180-2031-2DB04 Danfoss differential pressure switch has high vibration resistance and feature all commonly marine approvals
Regulating Range: 0 to 30 bar – Factory set @ 1 bar rising
Differential Range: 0.3 to 5 bar
Max. Working Pressure: 45 bar
Connection Size:Flange With G1/4 Connection
Electrical Connection: PG13.5 EN 175301-803-A
Contact Function: SPDT
Reset: Automatic

Product Attachment : PDF

Description

MBC 5180-2031-2DB04 Danfoss differential pressure switches are used in marine applications where space and reliability are the most important features.
MBC 5180-2031-2DB04 Danfoss differential pressure switches are compact pressure switches, designed according to our new block design to survive in the harsh
conditions known from machine rooms onboard ships.
MBCs have high vibration resistance and feature all commonly marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures.
MBV test valves can be delivered as standard option for MBC pressure switches.

Ambient Temp. -10 to 85 °C
Contact rating AC15=0.5 A, 250 V
Contact rating DC13=12 W, 125 V
Diff. Range Setting (Min/Max) 0.30/5.00 bar
Max Test/Working Pressure 68.0/45.0 bar
Regulation Range 0 to 30 bar
Pressure Connection Type G – 1/4 Female
Electrical Connection Type DIN-plug Female EN 175301-803-A Pg 13.5
Enclosure Rating IP65
Approval ABS, CCC, CCS, CE, EAC, GL, KRS, LR, LVD, NKK, RINA, RoHS, RoHS China, TYSK
EAN no. 5702423255443

Brand

Danfoss

Additional Information
Weight 0.7 kg
Dimensions 17 × 10 × 6 cm
Danfoss

Special Function

Maker

Price €

Electrical Connection

Pg13.5

Max Pressure range (Bar)

30

Min Pressure range (Bar)
