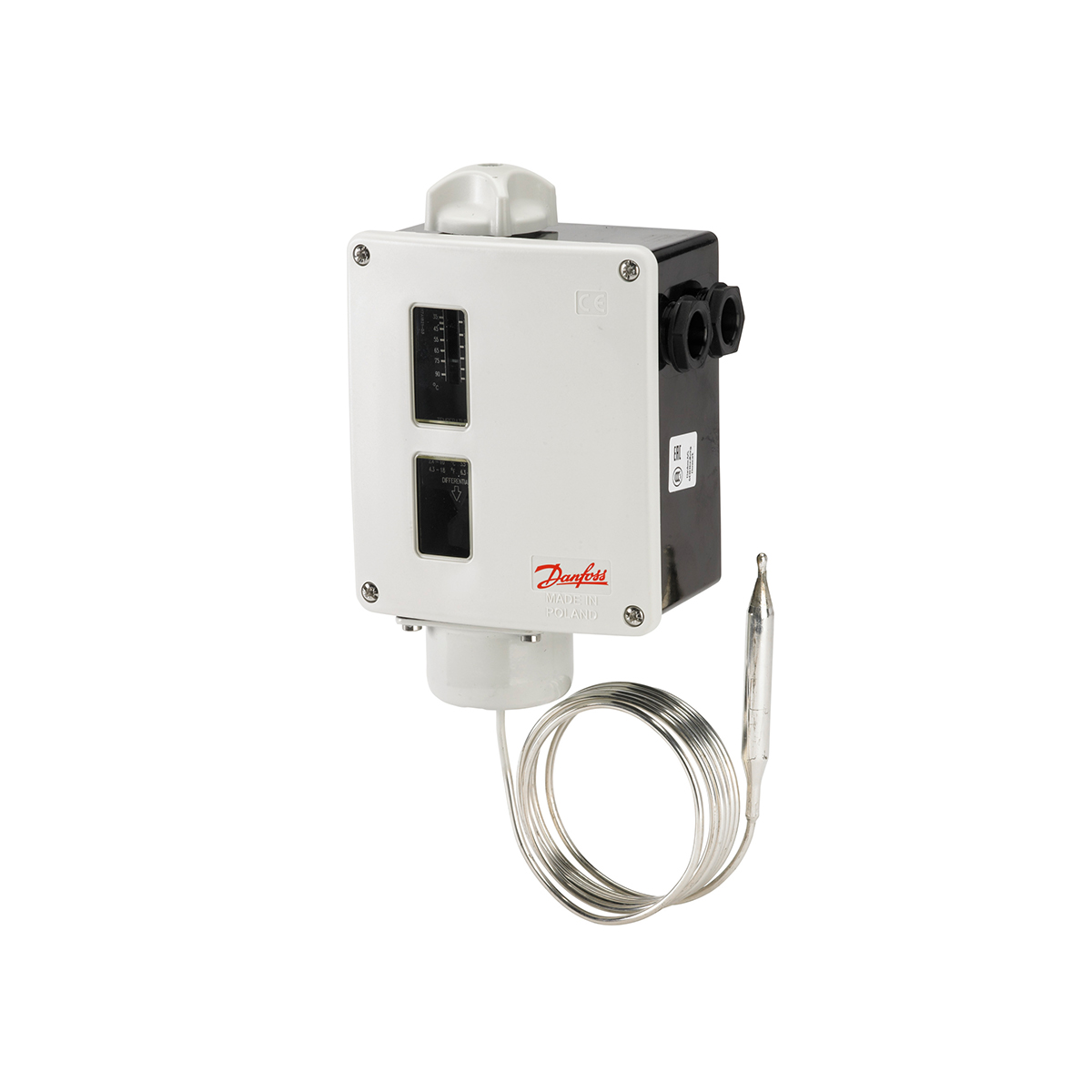

Danfoss RT101 Temperature Switch
Range 25 to 90°C
€165.06 Excl. VAT
RT, Temperature switches
5M Danfoss Temperature Switch
Temperature Range: 25 to 90°C
Temp. Differential Min. Range: 2.4 to 10°C
Temp. Differential Max Range: 3.5 to 20°C
Max. Sensor Temperature: 300°C
Sensor Type: Remote Sensor With Capillary Tube
Capillary Length: 5000mm
Contact Function: SPDT
Reset: Automatic
Sensor Size: 9.5ø x 110mm
Product Attachment : PDF
Available on backorder
Description
5M Danfoss temperature switches are used in general industrial and marine sectors.
The 017-502266 RT101 5M Danfoss temperature switch is part of a series consisting of a variety of ordinary
room temperature switches and remote sensor temperature switches including neutral zone temperature switches.
RT temperature switches are generally recommended for applications where safety or economical consequences are critical factors
Temperature Range 25 to 90 °C
Max. Sensor Temperature 300 °C
Diff. Min/Max Range Setting 2.4 to 10.0 °C/3.5 to 20.0 °C
Ambient Temperature -50 to 70 °C
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Sensor Size (Ø x L) 9.5 x 110 mm
Sensor Pocket Length Min. 112 mm
Electrical Connection Female Screwed Cable Entry 2xPg13.5 DIN 40430
Enclosure Rating IP66
Approval BV, CCC, CE, DNV, EAC, GL, LVD, NKK, PZH, RMRS, RoHS, RoHS China, TYSK
EAN no. 5702423119486
Additional Information
Weight | 1 kg |
---|---|
Dimensions | 25 × 25 × 15 cm |
Danfoss | |
size(f) | |
Type | |
Maker | |
Price € | |
Electrical Connection | Pg13.5 |
Sensor Length (mm) | 112 |
Temperature Range (°C) | 25..90 |
Capillary tube length (mm) | 5000 |
