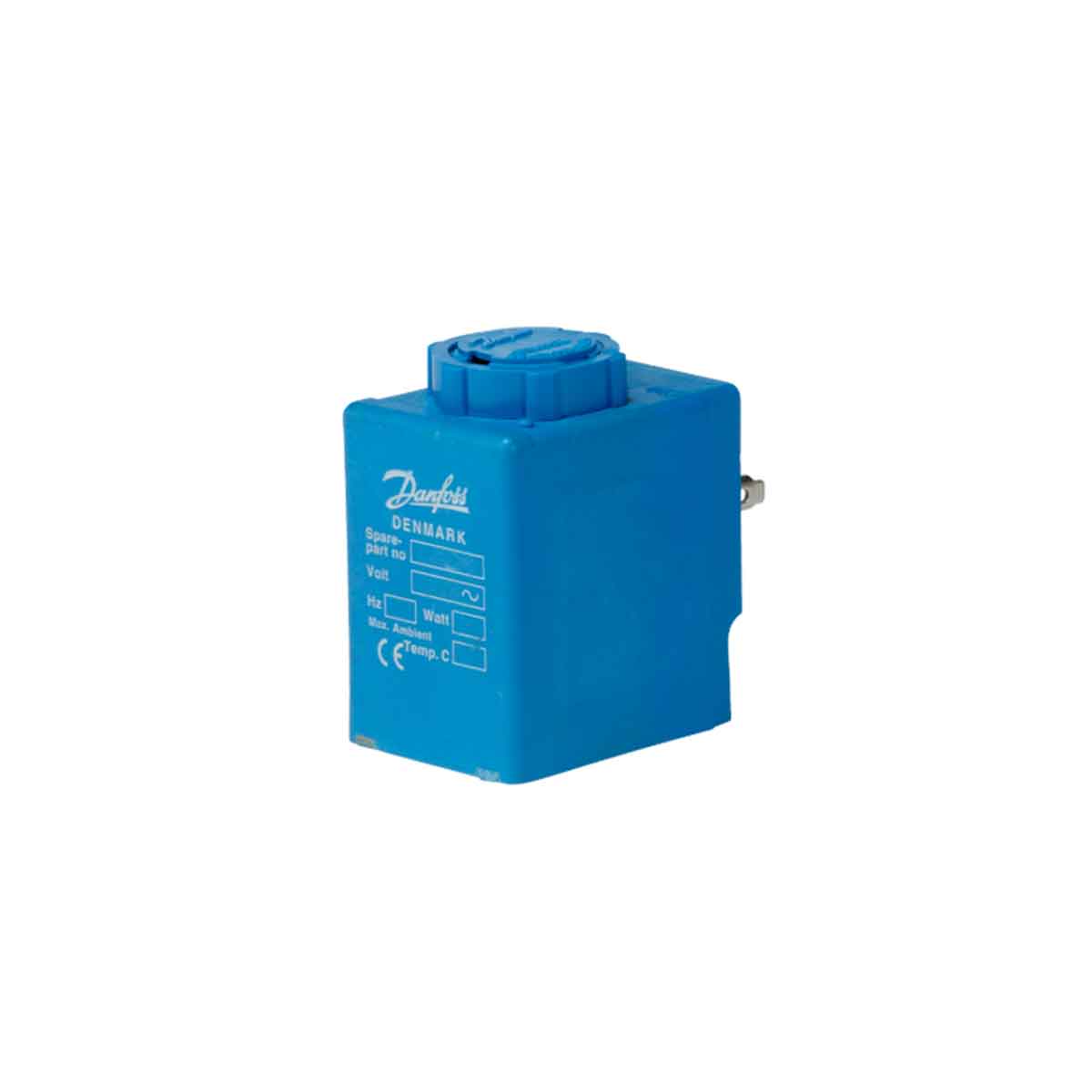

Danfoss Solenoid Coil 042N7520
€15.02 Excl. VAT
Solenoid Coil| Supply : AC 24 [V] | 9,5[W] Consumption
Available on backorder
Description
The Danfoss 042N7520 is a BA024B series Solenoid Coil. It is a compact, low-power DC coil designed for use with a specific range of small Danfoss solenoid valves, including the EV210A, EV220A, and EV310A series.
Additional Information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 25 × 25 × 15 cm |
| Supply Voltage: | 24 V AC. |
| Frequency: | 60 Hz. |
| Power Consumption: | o (60Hz): 9.5 W. |
| Actuator Size: | 13.5 mm. |
| Electrical Connection: | DIN Spade with 3 spades, standard EN175301-803. |
| Coil Fastening: | Nut and snap system. |
| Enclosure Rating: | IP00 (open coil). Protection can be increased to IP20 with a protective cap or IP65 with a mounted cable plug. |
| Ambient Temperature Range: | -40°C to 40°C (-40°F to 104°F). |
| Coil Winding Insulation Class: | Class H to IEC 85. |
| Duty Rating: | Continuous. |
| Color: | Blue. |
Brand
Danfoss
