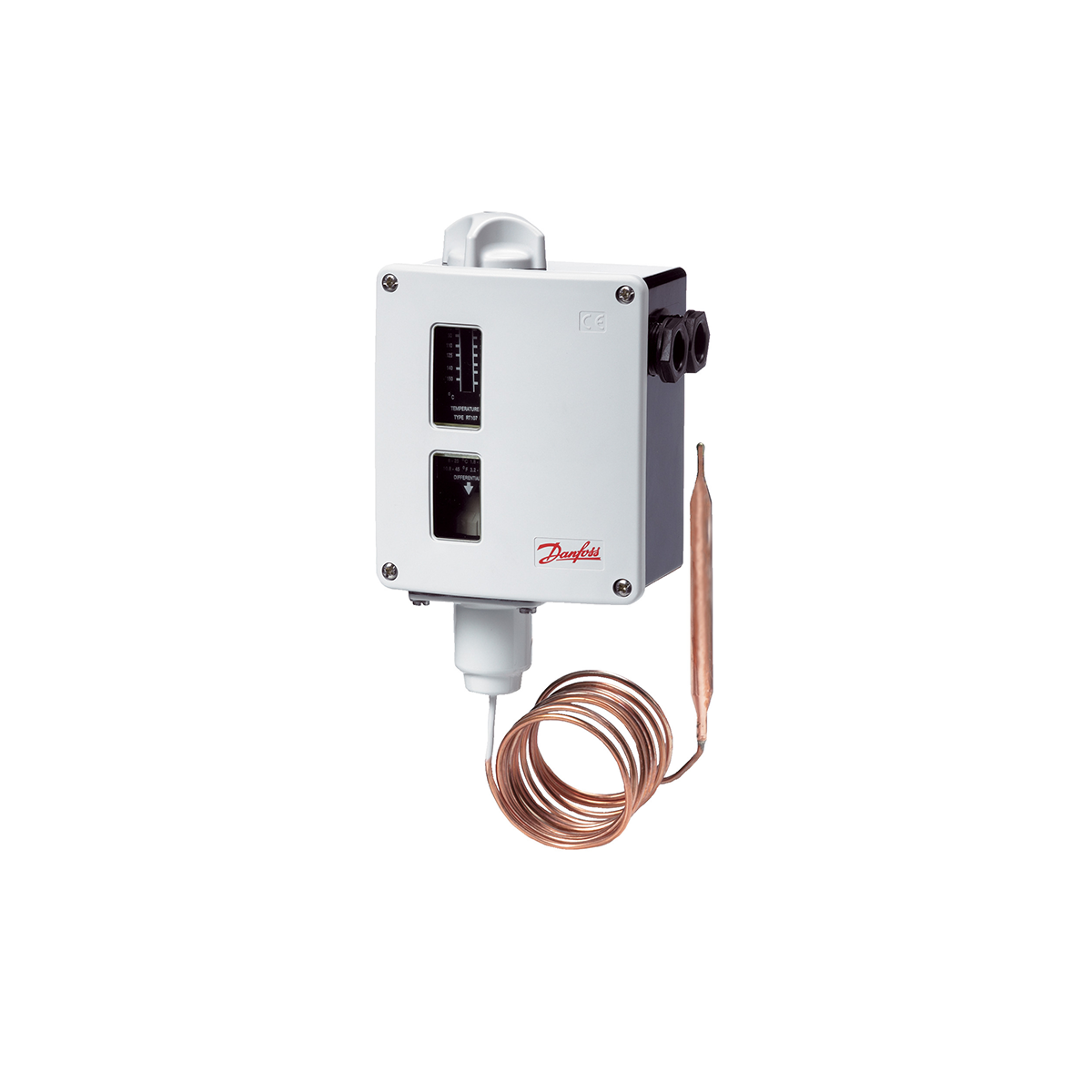

Danfoss RT107 Temperature Switch
Range 70 to 150°C

337.32 141.67 Excl. VAT

SKU: 017-514066 Category:

RT, Temperature switches

5M Danfoss Temperature Switch
Temperature Range: 70 to 150°C
Temp. Differential Min. Range: 6 to 25°C
Temp. Differential Max Range: 1.8 to 8°C
Max. Sensor Temperature: 215°C
Sensor Type: Remote Sensor With Capillary Tube
Capillary Length: 5000mm
Contact Function: SPDT
Reset: Automatic
Sensor Size: 9.5ø x 110mm

Product Attachment : PDF

Description

5M Danfoss temperature switches are used in general industrial and marine sectors.
The 017-514066 RT107 5M Danfoss temperature switch is part of a series consisting of a variety of ordinary room
temperature switches and remote sensor temperature switches including neutral zone temperature switches.
RT temperature switches are generally recommended for applications where safety or economical consequences are critical factors.

Temperature Range 70 to 150 °C
Max. Sensor Temperature 215 °C
Diff. Min/Max Range Setting 1.8 to 8.0 °C/6.0 to 25.0 °C
Ambient Temperature -50 to 70 °C
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Sensor Size (Ø x L) 9.5 x 110 mm
Sensor Pocket Length Min. 112 mm
Electrical Connection Female Screwed Cable Entry 2xPg13.5 DIN 40430
Enclosure Rating IP66
Approval CCC, CE, DNV, EAC, GL, KR, LR, LVD, NKK, PZH, RMRS, RoHS, RoHS China, TYSK
EAN no. 5702423120321

Brand

Danfoss

Additional Information
Weight 1.1 kg
Dimensions 12 × 16 × 26 cm
Danfoss

size(f)

Type

Maker

Price €

Electrical Connection

Pg13.5

Sensor Length (mm)

112

Temperature Range (°C)

70..150

Capillary tube length (mm)

5000
