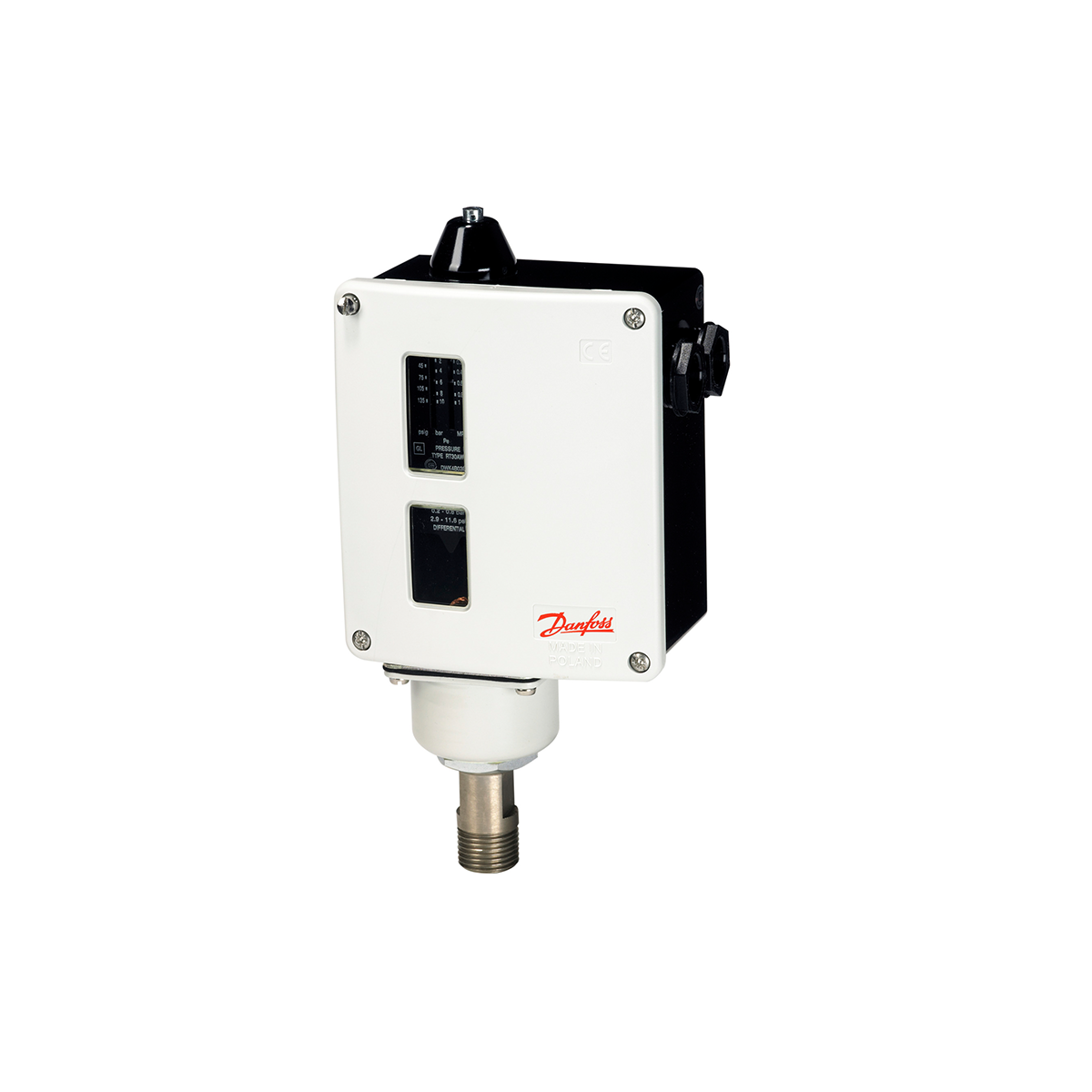

Danfoss RT117 Pressure Switch
10 to 30 bar

297.88 125.11 Excl. VAT

RT, Pressure switches

Danfoss Pressure Switch
Regulating Range: 10 to 30 bar
Differential Range: 1 to 4 bar
Max. Working Pressure: 42 bar
Connection Size: 3/8 bsp
Contact Function: SPDT
Reset: AUTOMATIC

Product Attachment : PDF

Description

pressure switches are used in general industrial and marine sectors.
The RT117 017-529566 single pressure switches series consist of a
variety of ordinary controls including neutral zone pressure switches,
safety pressure switches for steam boiler plant, and gold plated fail-safe
controls for applications in which safety or economical consequences
are critical factors.

Ambient Temp. -50 to 70 °C
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Diff. Range Setting (Min/Max) 1.00 to 4.00 bar
Max Test/Working Pressure 47.0/42.0 bar
Regulation Range 10.00 to 30.00 bar
Pressure Connection Type G – 3/8 Male
Electrical Connection Type Female Screwed Cable Entry DIN 40430 2xPg 13.5
Enclosure Rating IP66
Approval BV, CCC, CE, DNV, EAC, GL, KR, LR, LVD, NKK, PZH, RINA, RMRS, RoHS, RoHS China, TYSK
EAN no. 5702423121342

Brand

Danfoss

Additional Information
Weight 1 kg
Dimensions 18 × 16 × 24 cm
Danfoss

Special Function

Rated Current AC3 (A)

Maker

Price €

Electrical Connection

Pg13.5

Max Pressure range (Bar)

30

Min Pressure range (Bar)

10
