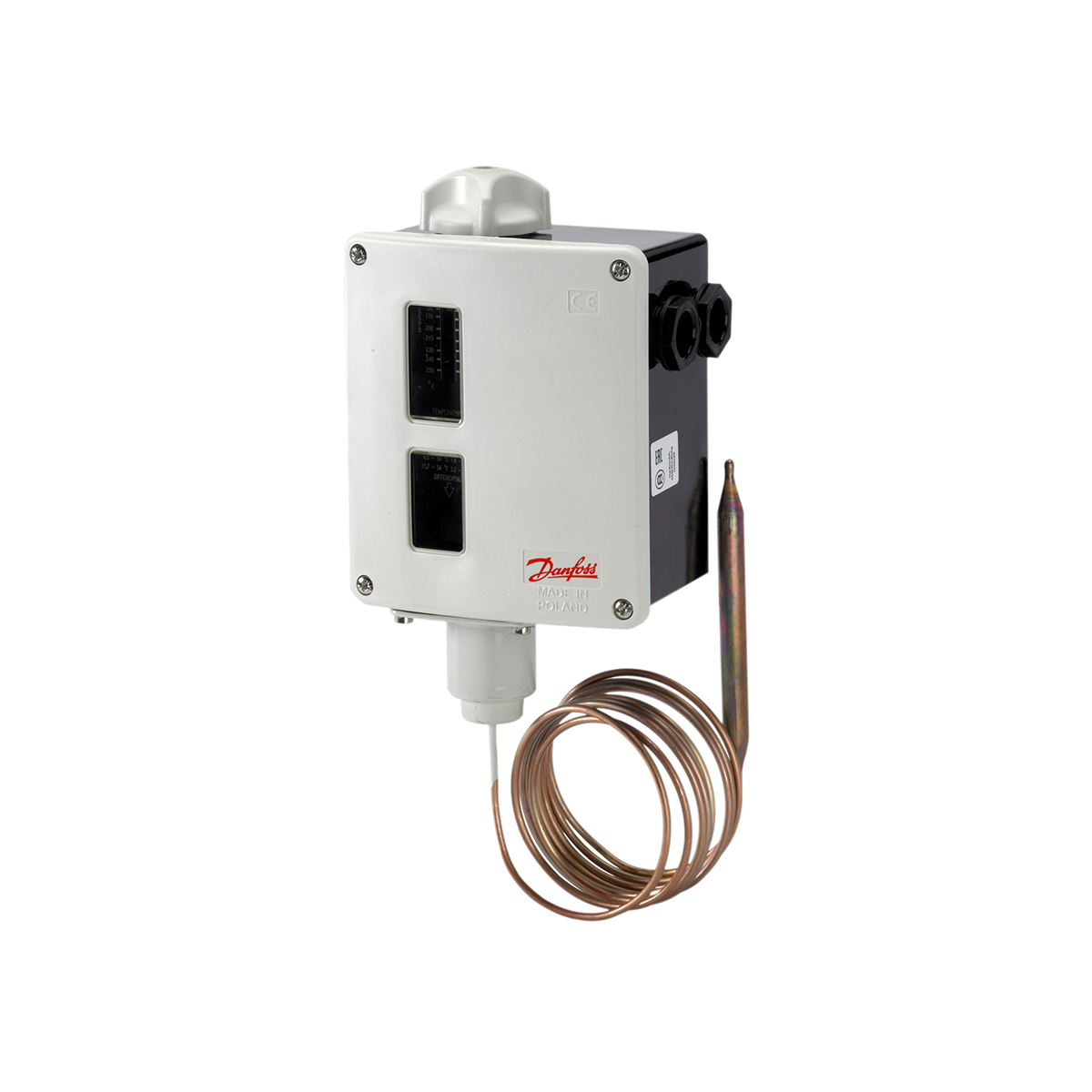

Danfoss RT7 Temperature Switch
Range -25…15°C

191.08 118.47 Excl. VAT

SKU: 017-505366 Category:

Temperature Switch

Temperature range: – 25°C to 15°C
Replaceable contact system
Also available with gold plated contact systems
Fail-safe
Adjustable differential
Enclosure IP66
Available with min. and max. reset function (IP54)
Available with dead zone
Available with all relevant marine approvals

Product Attachment : PDF

Description

Type Code RT7
Weight 0.857 Kg
Ambient temp. range -50 – 70 °C
Ambient temp. range -58 – 158 °F
Approval CCC, CE, EAC, GL, LVD, NKK, PZH, RMRS, RoHS, RoHS China, TYSK
Cap. tube length 78 3/4 in
Cap. tube 2.000 mm
Charge type Adsorption
Contact function SPDT
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Diff./max. range 2,5 – 14,0 °C
Diff./min. range 2,0 – 10,0 °C
Diff. type Adjustable
EAN no. 5702428003681
Electrical conn. Male/Female Female
Electr. conn. size 2xPg 13.5
Electr. spec. standard EN 60947-4/-5
Enclosure rating IP66
Glow lamp No
Max. Sensor temp. 150 °C
Max. Sensor temp. 302,0 °F
Pack format Multi pack
Descript. Temperature Control
Prod. Group Switches and thermostats
Prod. name Thermostat
Pack qty. 15 pc
Reset Auto
Sensor (diameter x length) 3/8 x 3 1/8 in
Sensor (diameter x length) 9.5 X 80 mm
Sensor Remote sensor
Temp. range -25 – 15 °C
Temp. range -11 – 59 °F

Brand

Danfoss

Additional Information
Weight 1 kg
Dimensions 9 × 13 × 26 cm
Danfoss

size(f)

Type

Maker

Price €

Electrical Connection

Pg13.5

Sensor Length (mm)
Temperature Range (°C)

-15..25

Capillary tube length (mm)

2000
