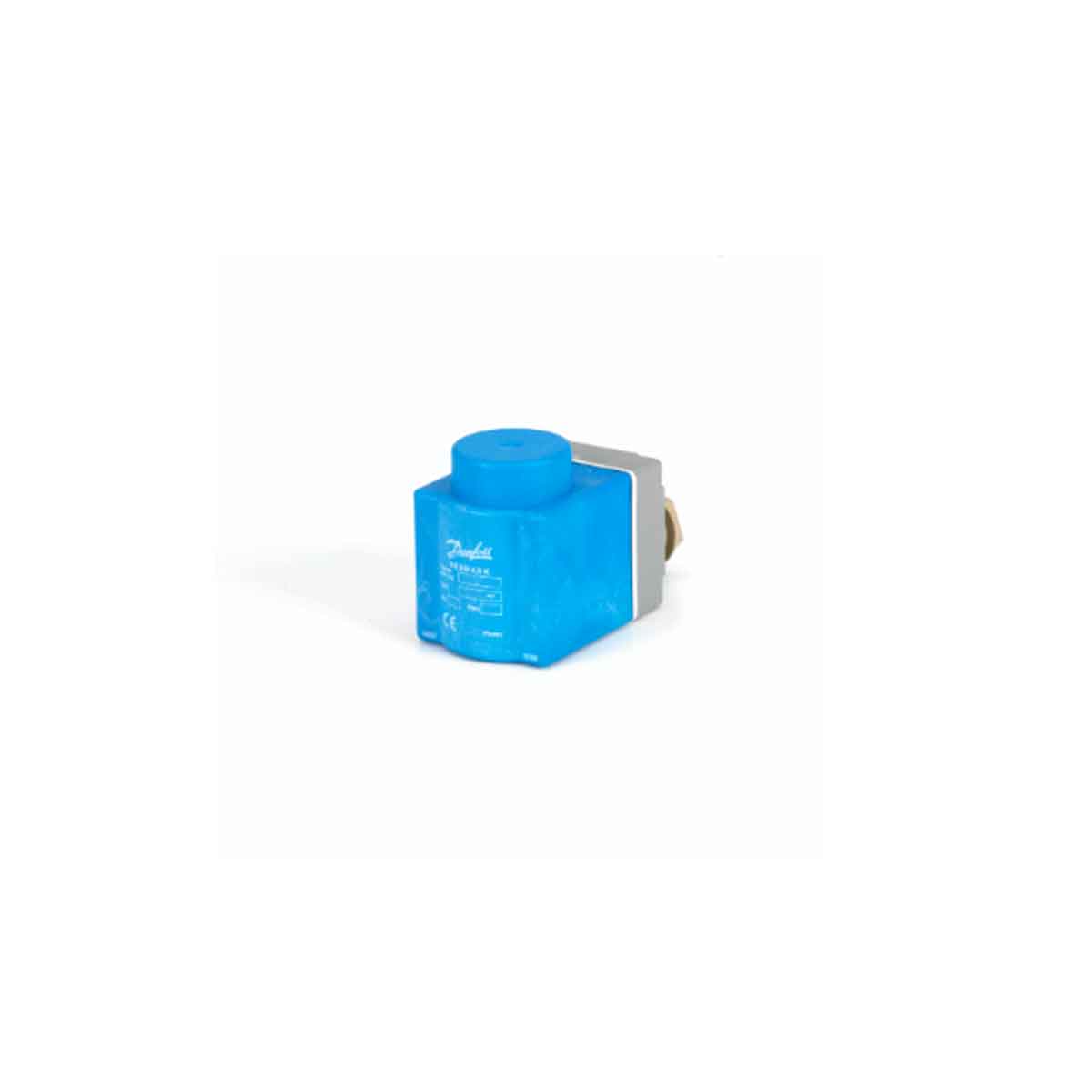

Danfoss Solenoid coil BE110CS for valve 110VAC
BE, High performance coils
10V 10W 50/60HZ Danfoss coil with terminal box-BE110CS
Danfoss Coil
110V 50/60HZ
10W
Product Attachment : PDF
Description
Danfoss BE110CS Spare Coil for demanding applications, with IP67, for valve range B, 10Wac / 18W dc, IP67
• Clip-on system for fast, easy fitting and removal
• Encapsulated coils with long operation life
• Ambient temperature: Up to +80°C
• IP 67 for moist environments with terminal box
Type Code BE110CS
Weight 0.305 Kg
Actuator size 13.5 mm
Ambient temp. -40 – 50 °C
Ambient temp. -40 – 120 °F
Approval LLC CDC TYSK
Coil conn. Connection Box
Colour BLUE
EAN no. 5702428023139
Enclosure rating IP67
Freq. 50/60 HZ
Identical prod. 018F8730
Pack format Multi pack
Power consumpt. 50Hz/DC 15,0 W
Power consumpt. 60Hz 13,0 W
Power consumpt. 50Hz 28 VA
Power consumpt. 60Hz 22 VA
Prod. group Solenoid valves
Prod. name Solenoid coil
Pack qty. 32 PC
Spare part code no. 018F6192
Supply volt. 110 V
Supply voltage 50Hz Max 110 V
Supply voltage 60Hz Max 110 V
Type designation BE110CS
Additional Information
Weight | 1 kg |
---|---|
Dimensions | 25 × 25 × 15 cm |
Danfoss | |
Rated Voltage (Vac) | |
Working Frequency (Hz) | |
Maker | |
Characteristics Class | |
Actuator size (mm) | 13.5 |
Power (W) | 10 |
