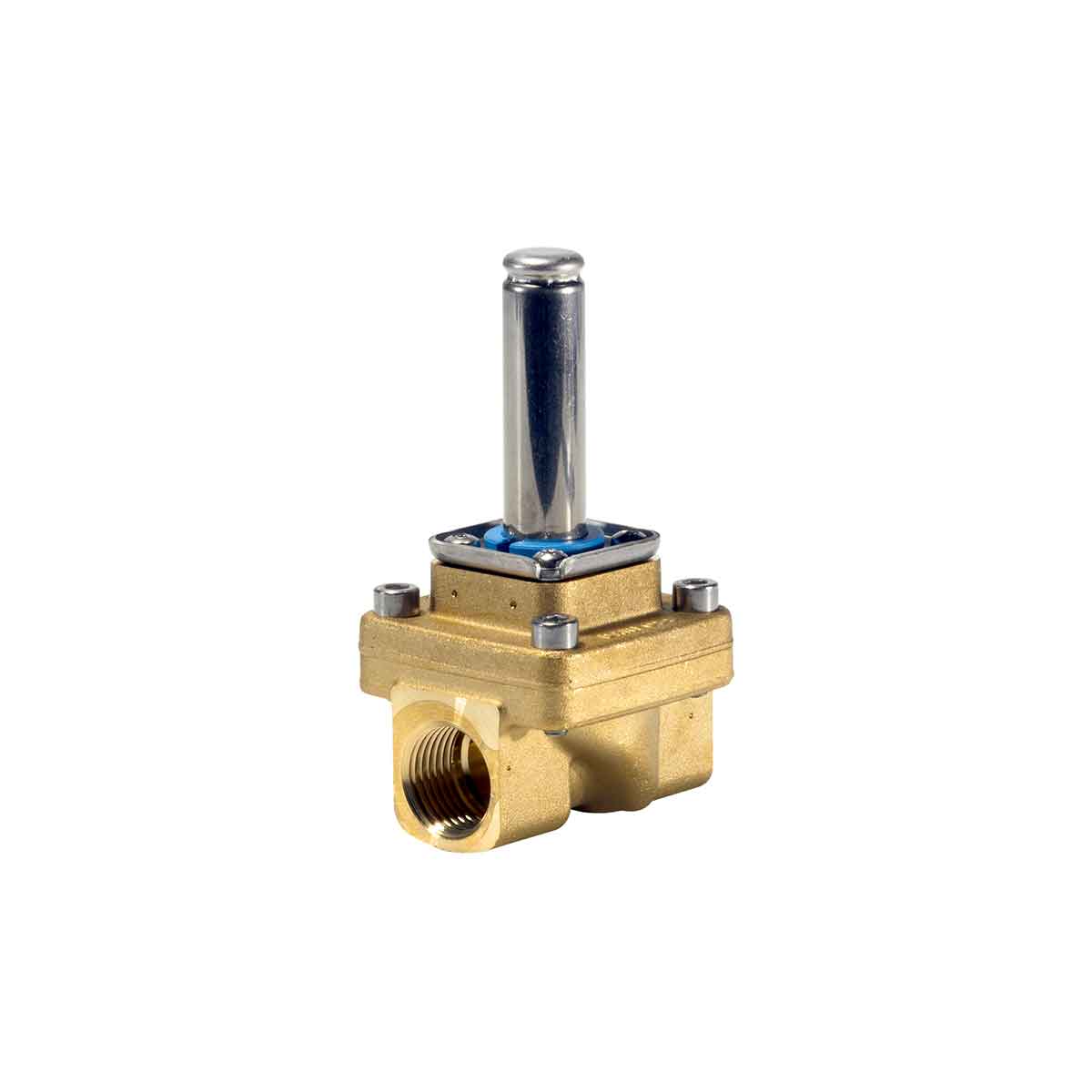

Danfoss Solenoid Valve 032U5251
€68.16 Excl. VAT
Solenoid Valve Oil/Comp./Air/Vacuum| Pe: 0 ~ 10 Bar | 3/8″ NC Function
Available on backorder
Description
The Danfoss 032U5251 is an EV250B series 2/2-way, assisted lift-operated, Normally Closed (NC) solenoid valve body. It is specifically designed for applications that require operation from zero differential pressure, making it suitable for systems like closed-circuits and drainage.
Additional Information
| Weight | 1 kg |
|---|---|
| Dimensions | 25 × 25 × 15 cm |
| Orifice size: | 10 mm. |
| Kv value: | 2.5 m³/h. |
| Maximum Working Pressure: | 10 bar (145 psi). |
| Ambient Temperature max.: | 80°C (176°F). |
| Differential Pressure Range: | 0–10 bar (0–145 psi). |
| Function: | Normally Closed (NC). |
| Connections: | G 3/8 inch internal thread (ISO 228-1 standard). |
| Body Material: | DZR (Dezincification Resistant) Brass, offering improved corrosion resistance. |
| Seal Material: | FKM (Viton). |
| Media recommendations: | Oil, compressed air, vacuum, and slightly aggressive water at a maximum of 60°C/140°F. |
| Medium Temperature Range: | 0°C to 100°C (32°F to 212°F). |
| Actuator Size: | 13.5 mm (Actuator B). |
| Approvals: | UL, EAC, PED, PZH, SINTEF. |
Brand
Danfoss
