Danfoss Thermostat 017-504866
€138.18 Excl. VAT
Temperature Switch| Te Range: 20 ~ 90°C | Tube Length 2000[mm]
Available on backorder
Description

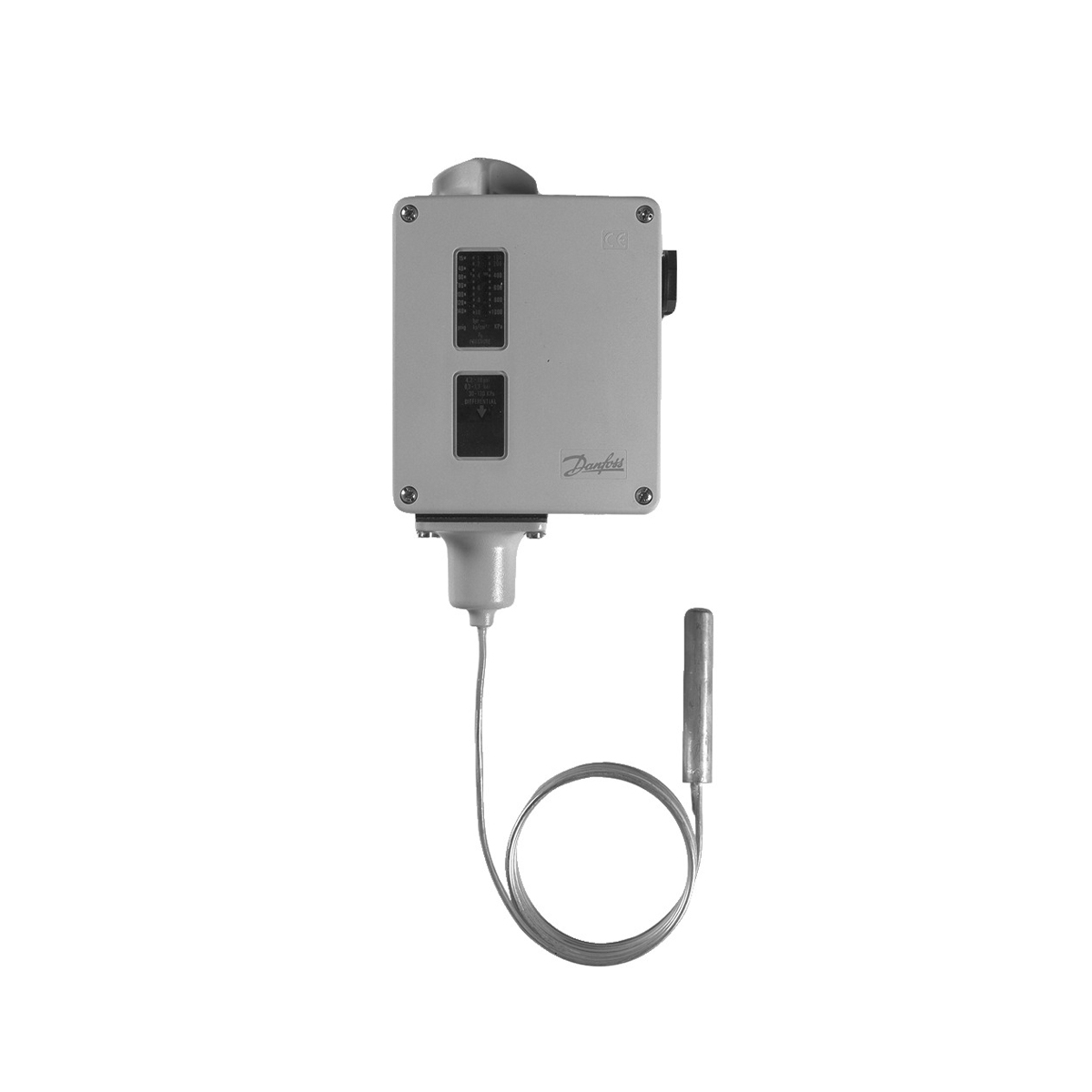

The Danfoss 017-504866 is an RT106 series Temperature Switch (Thermostat). It is a robust, remotely controlled switch used for general industrial and marine applications.
Additional Information
| Weight | 1.2 kg |
|---|---|
| Dimensions | 25 × 25 × 15 cm |
| Temperature Range: | 20°C to 90°C (68°F to 194°F). |
| Differential Range: | Adjustable, with a minimum differential of 4–20°C and a maximum differential of 2–7°C, depending on the setting. |
| Reset Function: | Automatic. |
| Contact Function: | SPDT (Single Pole Double Throw). |
| Sensor Type: | Remote bulb with a capillary tube. |
| Capillary Tube Length: | 2000 mm (2 meters). |
| Sensor Size (Ø x L): | 13 mm x 80 mm (1/2 x 3 1/8 in). |
| Max. Sensor Temperature: | 120°C (248°F). |
| Ambient Temperature Range: | -50°C to 70°C (-58°F to 158°F). |
| Electrical Connection: | Screwed cable entry, 2 x Pg 13.5. |
| Enclosure Rating: | IP66. |
| Approvals: | BV, CCC, CE, DNV, EAC, GL, KR, LR, and others. |
Brand
Danfoss
