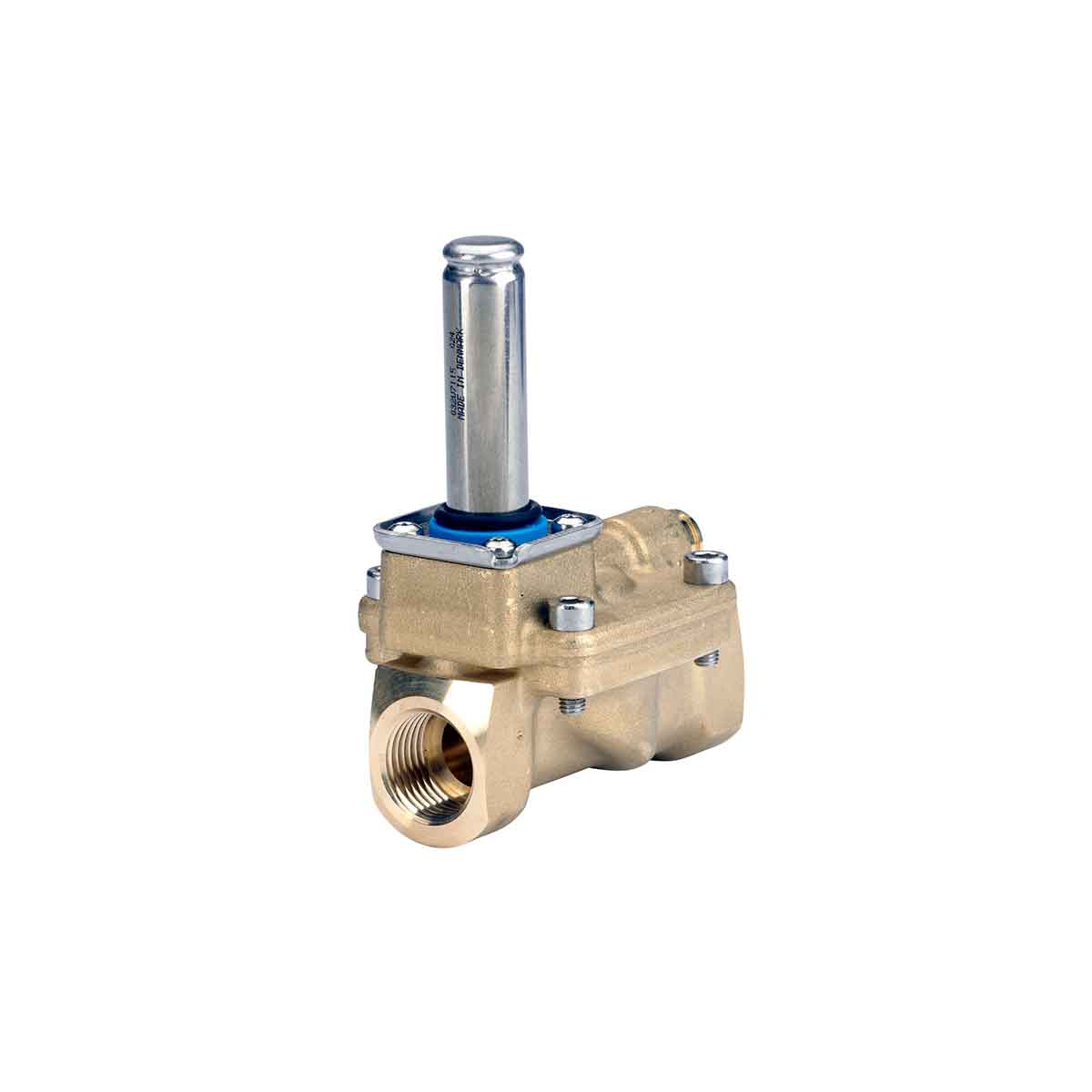

Danfoss EV224B 15B G 12N NC000 Solenoid Valve

280.73 168.44 Excl. VAT

SKU: 032U8360 Category:

EV224B, Servo-operated 2/2-way solenoid valves for high pressure

Danfoss Solenoid Valve EV224B 15mm NC G½ Brass NBR
Body Only
Coil Types: BB, BE
Function: 2-Way Normally Closed
Body Material: Brass
Seal Material: NBR
Pipe Size: G1/2
Orifice: 15mm
Kv m³/h: 4
Temp Range: Ambient +80°C, Medium air up to 60°C
Differential Pressure Ranges:- 0.3 to 40 Bar (AC)(DC) Coils

Product Attachment : PDF

Description

Danfoss EV224B is a high pressure indirect servo-operated 2/2-way solenoid valve with working pressure up to 40 bar,
medium temperature up to 60 °C and available in NC and NO versions.
Built-in pilot filter as standard, adjustable closing time, enclosures up to IP67 (depending on coil) ensure a reliable and satisfactory function.

• For high pressure air applications up to 40 bar
• 2/2-way servo-operated
• DN 15 – DN 25
• Ambient temperature: +80°C
• NC and NO versions
• Brass valve body
• Based on proven EV220B technology
• For compressed air
• Differential pressure: Up to 40 bar
• Media temperature from -10oC to +60oC
• Coil enclosure: Up to IP67
• Thread connections:From G 1/2 to G 1
• Built in filter for protection of pilot system.

No. of Ways 2/2
Connection Internal G1/2
Actuator size 13.5 mm
Ambient Temp. Max. 50 °C
Medium Temp Range -10 to 60 °C
Diff. Pressure 0.3 to 40 bar
Max Working Pressure 40.0 bar
Function NC
KV Value 4.000 m^3/h
Orifice Size 15.00 mm
EAN no. 5702423163908

Additional Information
Weight 0.8 kg
Dimensions 13 × 6 × 6 cm
Danfoss

Type

Specification

Maker

Price €

Actuator size (mm)

13.5

Orifice Size (mm)

15

Max Diff. Pressure (Bar)

40

Min Diff. Pressure (Bar)

0.3

No. of Ways

2/2
