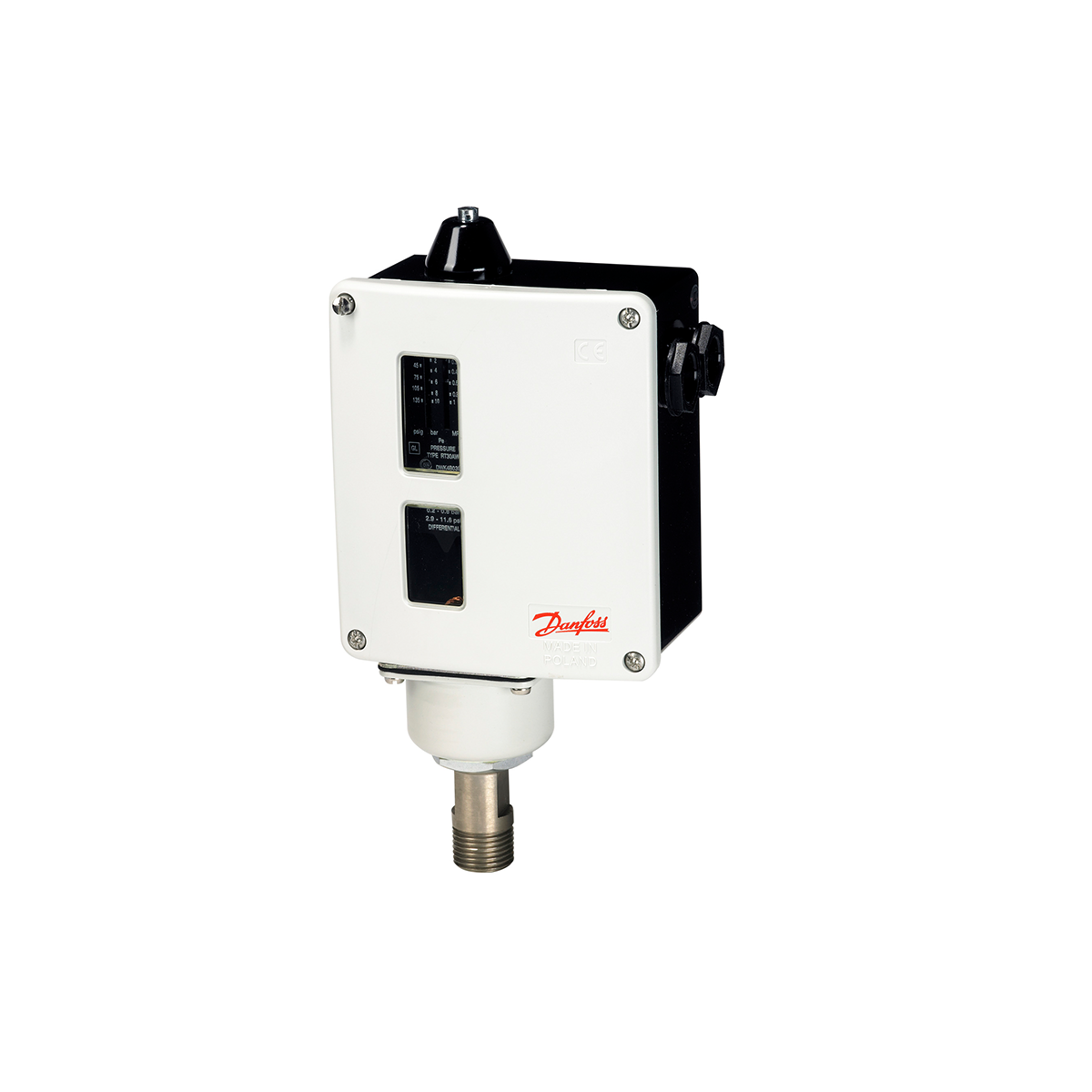

Danfoss RT112 PRESSURE SWITCH M/15

110.52 Excl. VAT

RT, Pressure switches
Danfoss Pressure Switch Without window
With Seal Cap to replace setting knob – anti-tamper
Regulating Range: 0.1 to 1.1 bar
Differential Range: 0.07 to 0.16 bar
Max. Working Pressure: 7 bar
Connection Size: 3/8 bsp
Contact Function: SPDT
Reset: Automatic

Product Attachment : PDF

Available on backorder

Description

Danfoss pressure switches are used in general industrial and marine sectors.
The 017-519366 RT112 Danfoss pressure switch is part of a series consisting
of a variety of ordinary controls including neutral zone pressure switches, safety
pressure switches for steam boiler plant, and gold plated fail-safe controls for
applications in which safety or economical consequences are critical factors.

Type Code RT112
Weight 0.870 Kg
Ambient temp. -50 – 70 °C
Ambient temp. -58 – 158 °F
Approval BV, CCC, CE, DNV, EAC, GL, LR, LVD, NKK, PZH, RINA, RMRS, RoHS, RoHS China, TÜV, TYSK
Contact function SPDT
Contact rating AC1=10 A, 400 V
Contact rating AC15=3 A, 400 V
Contact rating AC3=4 A, 400 V
Contact rating DC13=12 W, 220 V
Contact rating LR=28 A, 400 V
Diff. 0,07 – 0,16 bar
Diff. 1,00 – 2,30 psi
EAN no. 5702423120536
Electr. conn. Male/Female Female
Electr. conn. size 2xPg 13.5
Electr. spec. standard EN 60947-4/-5
Enclosure rating IP66
Max. test pressure 8,0 bar
Max. test pressure 116 psig
Max. Working Pressure 7,0 bar
Max. Working Pressure 100 psig
Pack format Multi pack
Pressure conn. std. ISO 228-1
Pressure conn. type G – 3/8 Male
Prod. description Pressure Control
Prod. group Switches and thermostats
Prod. name Pressure switch
Pack qty. 15 PC
Regul. range 0,10 – 1,10 bar
Regul. range 1,50 – 16,00 psig
Reset AUTO

Additional Information
Weight 1 kg
Dimensions 25 × 25 × 15 cm
Danfoss

Rated Current AC3 (A)

Maker

Price €

Electrical Connection

Pg13.5

Max Pressure range (Bar)

1.1

Min Pressure range (Bar)

0.1

Brand

Danfoss
